# Environment Configuration
Business processes often interact with external systems such as **databases** and **web services**.\
In real‑world scenarios, the configuration values for these systems—such as database URLs, credentials, or service endpoints—**differ across environments** (e.g. Development, Test, Production).
For example:
* A **JDBC URL** for the Development database is different from the Test database
* Production environments typically use separate hosts, credentials, and endpoints
To address this, starting from **ONEWEB version 4.0.0.19**, Process Designer provides support for **Environment Configuration**, allowing such values to be defined as **environment variables**.
This approach allows the same process to be deployed across environments **without modifying the process diagram**.
***
### Purpose of Environment Configuration
Environment Configuration is designed to:
* Separate environment‑specific values from process logic
* Avoid manual changes to process diagrams during deployment
* Support multi‑environment deployment (Dev / Test / UAT / Prod)
* Reduce configuration errors and maintenance effort
* Improve process portability and reusability
By using environment variables, processes become **environment‑agnostic**.
***
### Creating Environment Variables in an Application
To configure environment parameters for a process, environment variables must first be defined at the **application level**.
***

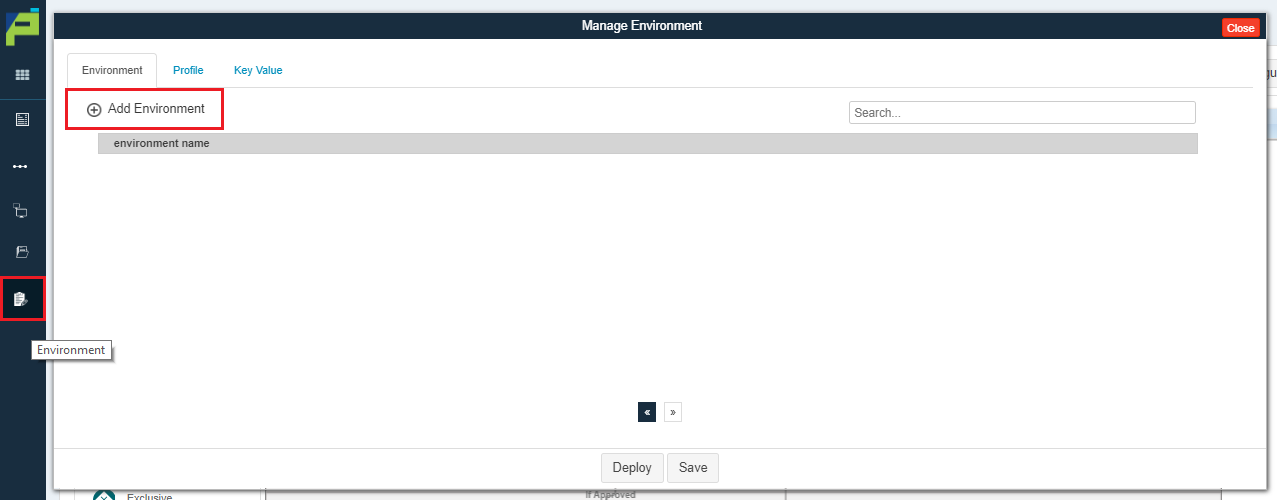

#### Step 1: Open Environment Setup
Navigate to the **Environment Setup** screen inside the application and click the **Add Environment** icon.
***

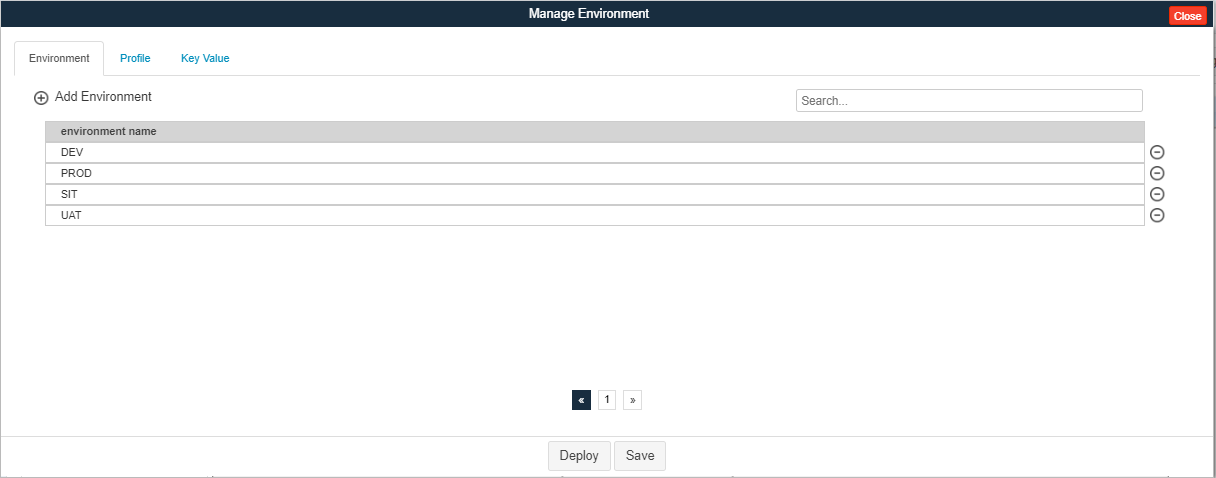

#### Step 2: Create Environments
Create the required environments for the application, such as:
* Development
* Test
* UAT
* Production
Each environment is managed independently.
***

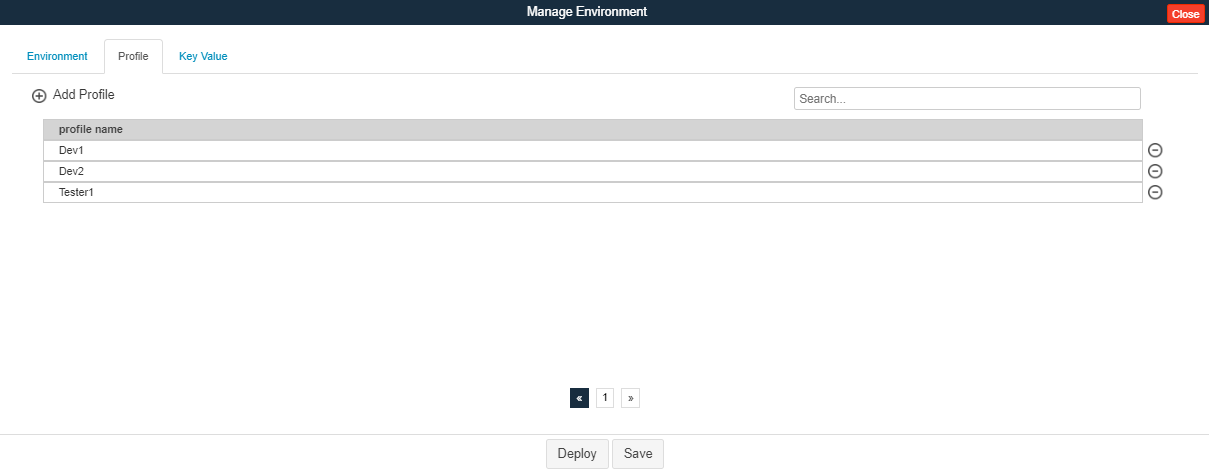

#### Step 3: Create Profiles (Optional)
Within each environment, users can also define **Profiles** on the **Profile tab**.\
Profiles allow further segregation of configuration values within the same environment.
***

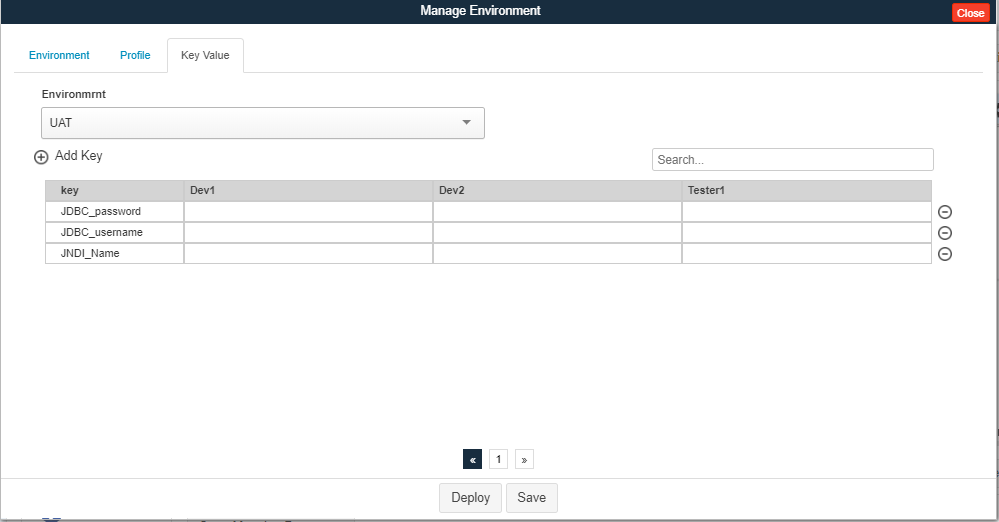

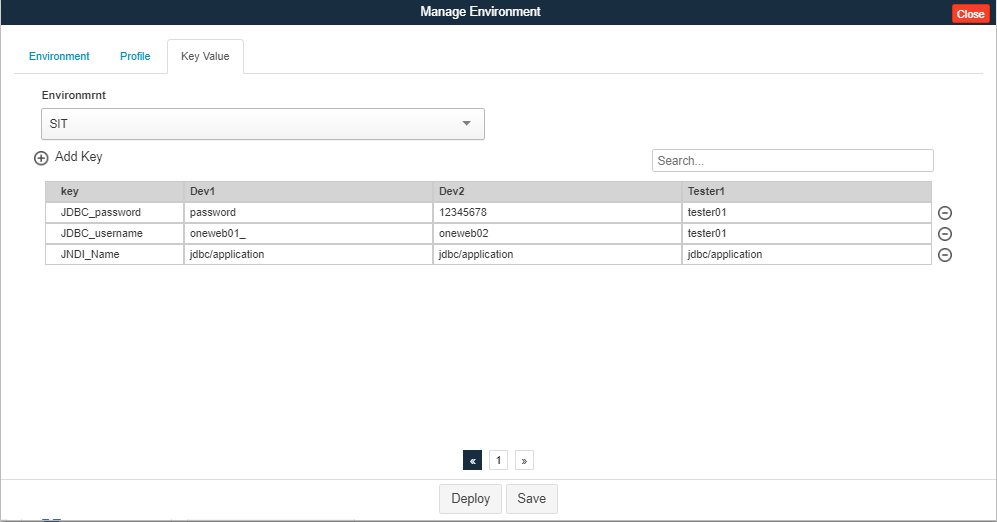

#### Step 4: Define Environment Variables
For each environment (and profile), define the required **environment variables**, such as:
* Database URLs
* JNDI names
* Web Service endpoints
* Credentials (if applicable)
The same variable (e.g. `DB_URL`) can then be created with **different values** for other environments.
***
### Using Environment Variables in Process Nodes
Once environment variables are defined, they can be used directly in **process node configurations**.

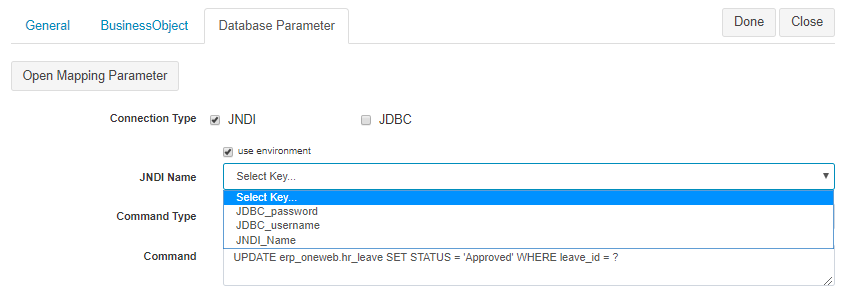

#### Example: Database Node Configuration
Many node configuration fields (such as Database Task or Web Service Task) provide a **Use Environment** checkbox.
When **Use Environment** is enabled:
* The value is loaded from the selected environment variable
* The node configuration automatically adapts to the target environment
This means:
* No hard‑coded URLs or credentials in the process
* No need to redesign or edit the process during deployment
***
### Usage Guidelines
* Define environment variables **before** configuring process nodes
* Use meaningful and consistent variable names (e.g. `DB_URL`, `SERVICE_ENDPOINT`)
* Avoid hard‑coding environment‑specific values in nodes
* Use profiles if multiple configurations are required within the same environment
* Always validate process behavior after switching environments
***
### Summary
**Environment Configuration** enables flexible, scalable, and safe deployment of processes across multiple environments.
Key benefits:
* Environment‑specific values are externalized
* Single process design works across Dev, Test, and Production
* Reduced deployment risk and maintenance effort
* Cleaner and more maintainable process diagrams
Using Environment Configuration correctly ensures that ONEWEB processes are **portable, production‑ready, and easy to manage across the full application lifecycle**.
---
