# Push Notification Task

The **Push Notification Task** is used to send notifications to **mobile applications** as part of a business process.\
It supports both **Android** and **iOS** platforms and integrates with a push‑notification hub to deliver messages to end users.

The Push Notification Task is represented by a **rectangular BPMN activity node**, as shown below.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FaVFLrEtqoeBj1GHrqOiI%2F0?alt=media" alt=""><figcaption></figcaption></figure>

***

### Purpose

The **Push Notification Task** enables a process to:

* Notify mobile users about task assignments
* Send alerts, reminders, or status updates
* Trigger mobile engagement during or after process execution

It communicates with a **push‑notification hub** and delivers messages to:

* Android applications
* iOS applications\
  (or both from a single task configuration)

***

### Push Notification Task Configuration Overview

The Push Notification Task configuration panel consists of **three main tabs**:

1. **General**
2. **Business Object**
3. **Push Notification**

Each tab defines a specific area of configuration.

***

### General Tab

The **General** tab contains basic metadata for the Push Notification Task, including:

* Task name
* Task ID
* Description

These properties help document and identify the notification step within the process flow.

> **Important**\
> Always click **Save Panel** to persist configuration changes.

***

### Business Object Tab

The **Business Object** tab is used to configure and map:

* Input parameters (such as message content, user identifiers)
* Output parameters (if required)

This mapping allows dynamic message content to be generated based on process data and sent to the mobile application.

***

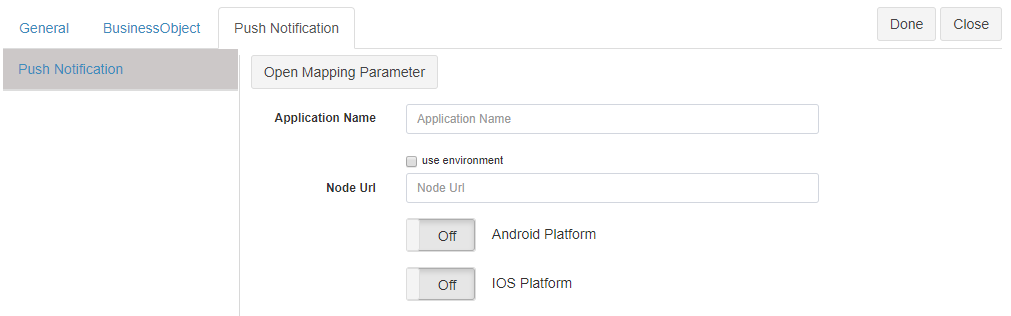

### Push Notification Tab

The **Push Notification** tab defines **platform‑level and connection settings**.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FtrrjW8twMpju6ctLDMrn%2F1?alt=media" alt=""><figcaption></figcaption></figure>

#### Core Properties

| Property         | Mandatory   | Description                             |
| ---------------- | ----------- | --------------------------------------- |
| Application Name | Yes         | Target mobile application name          |
| Use Environment  | No          | Load Node URL from environment variable |
| Node URL         | Yes         | URL of the push‑notification hub        |
| Android Platform | Conditional | Enable Android notifications            |
| iOS Platform     | Conditional | Enable iOS notifications                |

> Both **Android** and **iOS** platforms can be enabled within a single Push Notification Task.

***

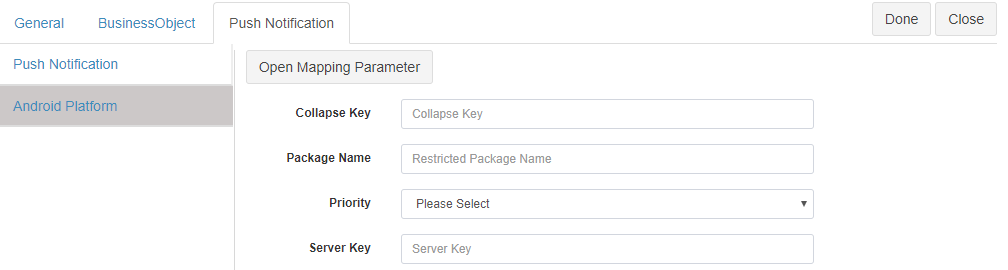

### Android Platform Configuration

When **Android Platform** is enabled, the following settings must be configured.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FiZK67zo1nE7T5z3tgEb9%2F2?alt=media" alt=""><figcaption></figcaption></figure>

#### Android Properties

| Property     | Mandatory | Description                                             |
| ------------ | --------- | ------------------------------------------------------- |
| Collapse Key | No        | Allows newer messages to replace older undelivered ones |
| Package Name | Yes       | Android application package name                        |
| Priority     | Yes       | Message priority: **High** or **Normal**                |
| Server Key   | Yes       | Firebase server key for Google services                 |

**Priority behavior**

* **High**: Wakes device and delivers immediately
* **Normal**: Delivery may be delayed when device is in Doze mode

***

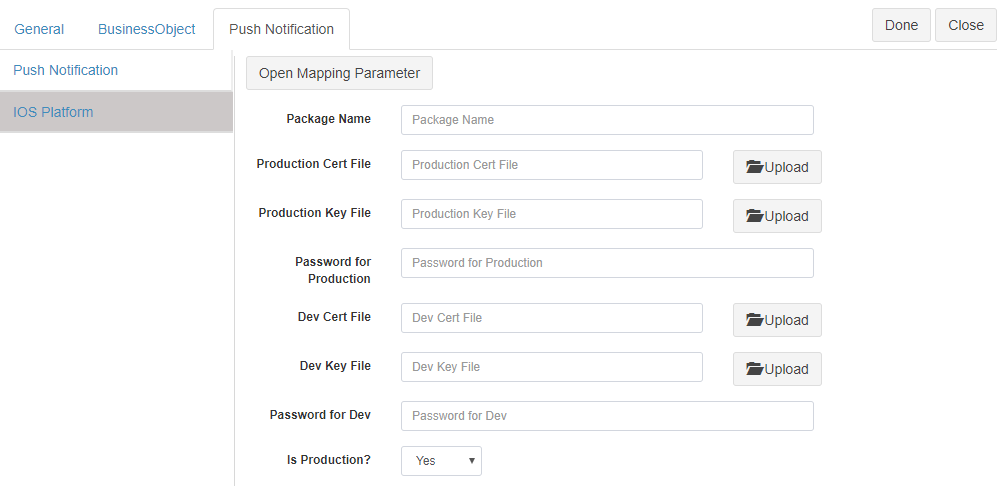

### iOS Platform Configuration

When **iOS Platform** is enabled, users must provide certificate and key details.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2F2K9ZHIyZuJGfDm9Ow12d%2F3?alt=media" alt=""><figcaption></figcaption></figure>

#### iOS Properties

| Property                | Mandatory | Description                               |
| ----------------------- | --------- | ----------------------------------------- |
| Package Name            | Yes       | iOS application bundle identifier         |
| Production Cert File    | Yes       | Production certificate file               |
| Production Key File     | Yes       | Production private key file               |
| Password for Production | Yes       | Password for production certificates      |
| Dev Cert File           | Yes       | Development certificate file              |
| Dev Key File            | Yes       | Development private key file              |
| Password for Dev        | Yes       | Password for development certificates     |
| Is Production?          | Yes       | Use production or development environment |

The **Upload** button is used to upload certificate and key files for both environments.

***

### Mapping Parameters

Both **Android** and **iOS** configuration panels include an **Open Mapping Parameter** button.

Clicking this button opens the **Mapping Parameter** screen, allowing users to:

* Map process data to notification payload
* Define dynamic message content
* Map identifiers such as user ID, device token, or message text

Mappings can be configured for:

* **Input parameters**
* **Output parameters** (if applicable)

***

### Best Practices

* Use environment variables for Node URL and sensitive values
* Keep notification payloads concise
* Enable only required platforms per task
* Test push notifications in both dev and production environments
* Ensure certificates and server keys are kept secure

***

### Summary

The **Push Notification Task** enables real‑time communication with mobile users during process execution.

Key capabilities:

* Supports Android and iOS platforms
* Integrates with push‑notification hubs
* Allows dynamic message generation via Business Objects
* Supports both development and production configurations
* Enhances user engagement and responsiveness

The Push Notification Task is essential for **mobile‑integrated workflows** that require timely user awareness and action within ONEWEB processes.


---
