# Human Task
The **Human Task** is used to assign a task to a human participant during process execution.\
It enables human interaction within an otherwise automated workflow and is represented by a **rectangular BPMN task node**, as shown below.
Human Tasks are essential whenever a process requires **manual decision‑making, approval, review, or data input** by a user.
***
### Purpose
The **Human Task** supports the allocation of work to a **human entity**, based on:
* Work Party assignments
* User roles
* Custom assignment conditions
It allows users to intervene in the process flow and provides a **mapping parameter screen** to define the **input and output data** required for task execution.
***
### Human Task Configuration Overview
The Human Task configuration panel consists of **four main tabs**, each defining a different aspect of task behavior:
1. **General**
2. **Business Object**
3. **Assignment Policy**
4. **Load Entity**
Each tab is described below.
***

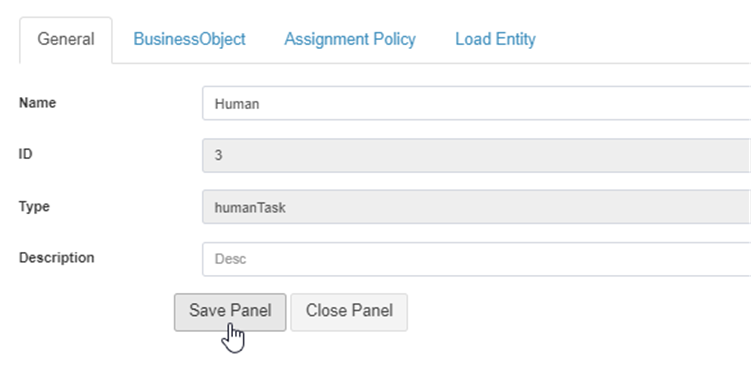

### General Tab
The **General** tab defines basic metadata for the Human Task, such as name and description.
#### General Properties
| Property | Mandatory | Default | Description |
| ----------- | --------- | ---------------- | --------------------------------------------------------------------------- |
| Name | Yes | Human | Default task name. Can be renamed (e.g. Manager Approval, Work Party Head). |
| ID | Yes | System‑generated | Unique identifier generated by the system. |
| Type | Yes | humanTask | Defines the task type. |
| Description | No | Desc | Description explaining the purpose of the task. |
> **Important**\
> Click **Save Panel** to persist any configuration changes.
***
### Business Object Tab
The **Business Object** tab is used to configure and map **input and output parameters** for the Human Task.
This mapping enables:
* Passing data into the task
* Collecting user input
* Sharing data between tasks
#### Key Points
* Activity parameters must be mapped if the task requires data
* Mapped parameters become available inside the task
* Mapping is **mandatory** only when data is needed for task execution
> **Note**\
> If the process does not require data exchange for this task, Business Object mapping can be skipped.
For detailed information about Business Objects, Process Parameters, and mapping, refer to the **Business Object Data Mapping** section.
***
### Assignment Policy Tab
The **Assignment Policy** tab defines how the Human Task is assigned to users.
#### Assignment Policy Settings
| Property | Mandatory | Default | Description |
| -------- | --------- | ------- | -------------------------------------------------------------------------------------------------------------------------- |
| Setting | Yes | Lane | Defines assignment strategy. Available options include: Lane, Pull, Round Robin, Load Balance, Routing Policy, and Custom. |
Each assignment strategy controls **how tasks are distributed** among users.
For detailed explanations of assignment methods, refer to the **Task Allocation & Queuing** section.
> Remember to click **Save Panel** after updating this tab.
***

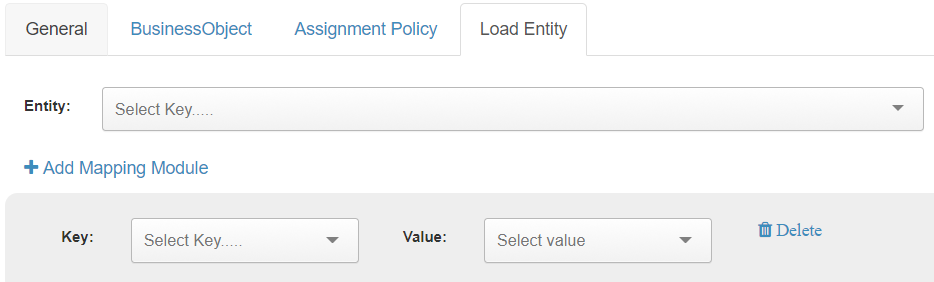

### Load Entity Tab
The **Load Entity** tab connects the Human Task to a **UI Entity** from the ONEWEB platform.\
This defines which user interface will be displayed when the task appears in a user’s To‑Do list.
#### Load Entity Properties
| Property | Mandatory | Default | Description |
| -------- | --------- | ------- | ------------------------------------------- |
| Entity | Yes | — | UI entity loaded when the task is assigned. |
| Key | No | — | Entity attribute used for data mapping. |
| Value | No | — | Value passed to the entity attribute. |
Additional features:
* **Add Mapping Module** to define key‑value mappings
* **Delete (Trash) icon** to remove mappings
> Click **Save Panel** to store Load Entity configuration.
***
### Summary
The **Human Task** is the primary mechanism for introducing **human participation** into a ONEWEB process.
Key takeaways:
* Used for approvals, reviews, and manual decisions
* Supports role‑based and rule‑based assignment
* Allows full configuration of data input/output
* Integrates seamlessly with UI entities
* Critical for real‑world, user‑driven business workflows
Proper configuration of Human Tasks ensures smooth collaboration between **business users and automated systems** within a process.
---
