# File Read Task
The **File Read Task** is used to read data from external files as part of a business process.\
It is represented by a **rectangular BPMN activity node**, as shown below.
This task is commonly used when a process needs to **ingest data from files**, such as batch jobs, integrations, or import workflows.
***
### Purpose
The **File Read Task** enables a process to retrieve and process information from files stored in various locations and formats.
It supports:
* Multiple **file sources**
* Multiple **file formats**
* Data filtering, sorting, transformation
* Post‑processing actions such as file movement
This makes it suitable for **data ingestion, ETL‑style flows, and system integrations**.
***
### File Read Task Configuration Overview
The File Read Task configuration panel consists of **three main tabs**:
1. **General**
2. **Business Object**
3. **File Read Parameter**
Each tab is described in detail below.
***
### General Tab
The **General** tab contains basic task metadata, including:
* Task name
* Task ID
* Description
These properties help identify the File Read Task within the process flow.
> **Important**\
> Always click **Save Panel** to persist changes.
***
### Business Object Tab
The **Business Object** tab is used to configure and map **input and output parameters** for the File Read Task.
This mapping allows:
* Passing parameters into the task
* Storing file data into process Business Objects
* Sharing file‑derived data with downstream activities
Business Object mapping is required if file data is used later in the process.
***

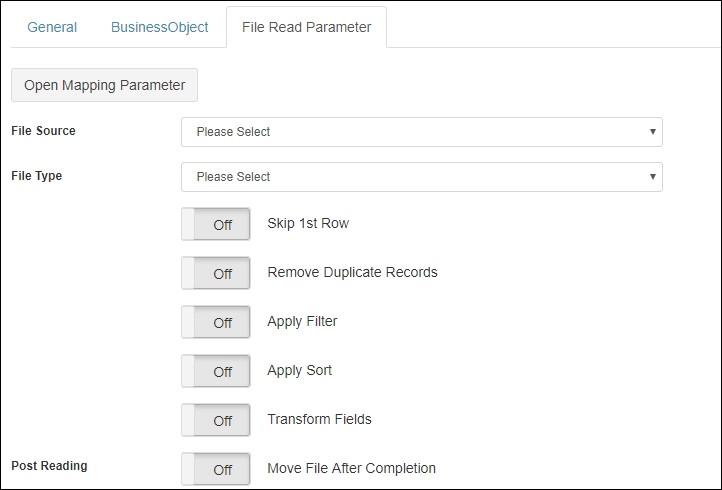

### File Read Parameter Tab
This tab defines **how and from where the file is read**.
#### Core Properties
| Property | Mandatory | Description |
| -------------------------- | --------- | ------------------------------------------------- |
| File Source | Yes | Source of the file (File System, FTP, SFTP, FTPS) |
| File Type | Yes | File format (FIXWIDTH, XLS, DELIMITED, XML) |
| Skip 1st Row | No | Skip header row |
| Remove Duplicate Records | No | Remove duplicate records |
| Apply Filter | No | Apply data filter |
| Apply Sort | No | Sort data |
| Transform Fields | No | Convert data types |
| Move File After Completion | No | Move file after success/failure |
***
### File Source Configuration
#### File System
Used to read files from a local or mounted directory.
| Property | Mandatory | Description |
| -------------- | --------- | ----------------------------- |
| Path Directory | Yes | Directory containing the file |
| File Name | Yes | Name of the file |
***
#### FTP
Standard FTP for file transfer.
| Property | Mandatory | Description |
| ------------------- | --------- | ----------------------- |
| IP Host | Yes | FTP host address |
| Port | Yes | FTP port |
| Passive Mode | No | Enable passive mode |
| Username / Password | Yes | Login credentials |
| FTP Repository | Yes | Backup directory |
| Expression | Yes | File matching condition |
| Suffix | No | File extension |
***
#### SFTP
Secure File Transfer Protocol over SSH.
Properties are similar to FTP but operate over a secure channel.
***
#### FTPS
FTP with SSL/TLS encryption.
Includes additional option:
* **Implicit SSL**
***
### File Type Configuration
#### FIXWIDTH
Used when each field has a defined width.
* Supports **uniform** and **non‑uniform rows**
* When non‑uniform rows are enabled, configure:
* HR (Header)
* TR (Splitter)
* TD (Data)
* LR (Footer)
***
#### XLS
Used for Microsoft Excel files.
| Property | Mandatory | Description |
| ---------- | --------- | ------------------- |
| Sheet Name | Yes | Excel sheet to read |
***
#### DELIMITED
Used for delimited text files.
| Property | Mandatory | Description |
| --------- | --------- | ------------------- |
| Delimiter | Yes | Delimiter character |
***
#### XML
Used for structured XML files.
| Property | Mandatory | Description |
| ------------------- | --------- | ------------------- |
| Required Field Name | Yes | XML field |
| Element Type | Yes | element / attribute |
| Path in XML File | Yes | XPath |
| End Tag Name | Yes | Stop parsing tag |
| Type Field Name | Yes | Data type |
***
### 🔄 Optional Processing Features
#### Remove Duplicate Records
Removes duplicates based on a selected field.
#### Apply Filter
Filters records using an expression.
#### Apply Sort
Sorts records by field (ASC/DESC).
#### Transform Fields
Converts data types.
#### Move File After Completion
Moves file to success or error directory after processing.
***
### 🔗 Mapping Parameters
Click **Open Mapping Parameter** to map:
* File output → Process Business Object
* Process input → File Read task
The mapping UI adapts automatically based on selected **File Type**.
***
### ✅ Summary
The **File Read Task** is a powerful data ingestion component in Process Designer.
Key features:
* Supports multiple file sources and formats
* Provides filtering, sorting, and transformation
* Integrates seamlessly with Business Objects
* Enables robust batch and integration workflows
Proper configuration of the File Read Task allows processes to handle **real‑world file‑based data flows** reliably and flexibly.
---
