# Database Task
The **Database Task** is used to execute **database commands** as part of a business process.\
It enables a process to interact directly with relational databases by performing SQL operations.
The Database Task is represented as a **rectangular BPMN activity node**, as shown below.
***
### Purpose
Most business processes rely on data stored in databases.\
The **Database Task** allows processes to:
* Retrieve data (**SELECT**)
* Insert new records (**INSERT**)
* Modify existing data (**UPDATE**)
* Remove data (**DELETE**)
Database Task is commonly used to:
* Fetch information required for decision making
* Persist process execution results
* Update system state during workflow execution
* Share data with downstream activities
***
### Database Task Configuration Overview
The Database Task configuration panel consists of **three main tabs**:
1. **General**
2. **Business Object**
3. **Database Parameter**
Each tab controls a specific aspect of database interaction.
***
### General Tab
The **General** tab contains basic metadata for the Database Task, including:
* Task name
* Task ID
* Description
These properties are used for identification and documentation within the process flow.
> **Important**\
> Always click **Save Panel** to persist any configuration changes.
***
### Business Object Tab
The **Business Object** tab is used to configure and map:
* **Input parameters** passed into the SQL command
* **Output parameters** returned from the database query
This mapping allows:
* Using values from previous tasks in SQL statements
* Passing query results to subsequent process activities
Business Object mapping is required whenever the database result is used later in the process.
***
### Database Parameter Tab
This tab defines **how the database is accessed and what SQL is executed**.
#### Core Properties
| Property | Mandatory | Description |
| --------------- | --------- | ------------------------------------------------- |
| Connection Type | Yes | Type of database connection: **JNDI** or **JDBC** |
| Command Type | Yes | SQL operation: **SELECT, INSERT, UPDATE, DELETE** |
| Command | Yes | SQL statement to be executed |
***

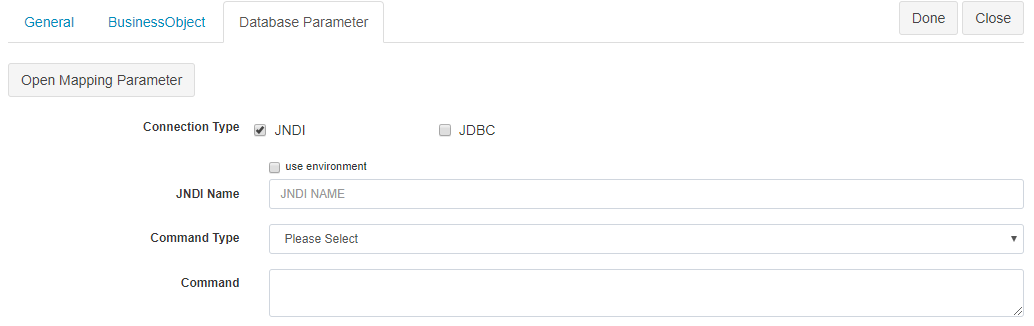

### Connection Type: JNDI
**Java Naming and Directory Interface (JNDI)** allows database connections to be referenced by a logical name configured on the application server.
When **Connection Type = JNDI**, users must define the JNDI name.
| Property | Mandatory | Description |
| --------------- | --------- | ---------------------------------------- |
| Use Environment | No | Load JNDI name from environment variable |
| JNDI Name | Yes | JNDI name for database connection |
**Recommended usage**:\
JNDI is preferred in production environments because connection details are centrally managed.
***

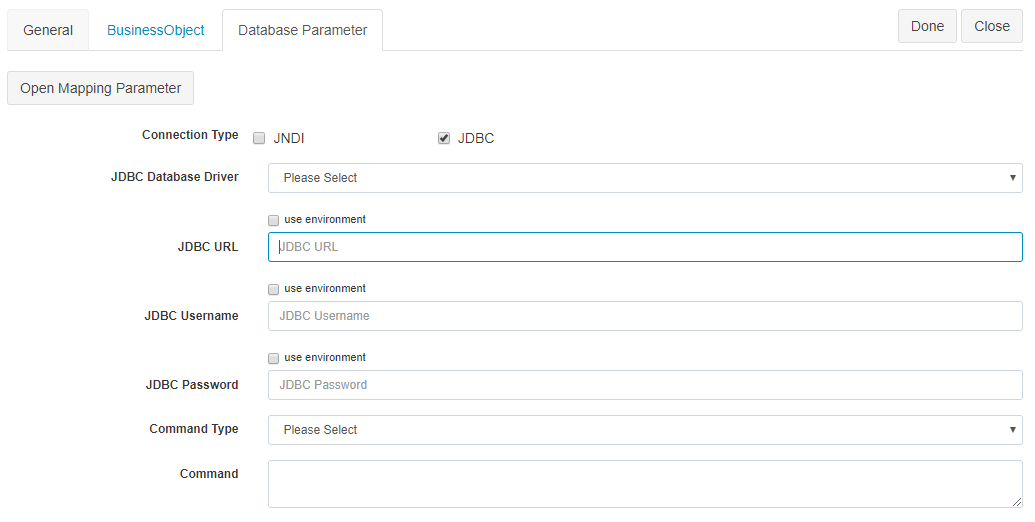

### Connection Type: JDBC
**Java Database Connectivity (JDBC)** provides direct database connection using driver, URL, and credentials.
When **Connection Type = JDBC**, the following properties must be configured:
| Property | Mandatory | Description |
| -------------------- | --------- | --------------------------------------- |
| JDBC Database Driver | Yes | Fully qualified driver class name |
| Use Environment | No | Load JDBC URL from environment variable |
| JDBC URL | Yes | Database connection URL |
| JDBC Username | Yes | Database username |
| JDBC Password | Yes | Database password |
JDBC is typically used for:
* Direct database access
* Environments without JNDI configuration
* Development or testing scenarios
***
### Mapping Database Parameters
Within the **Database Parameter** tab, click **Open Mapping Parameter** to map:
* **Process Input → SQL parameters**
* **SQL Result → Process Output**
This opens the **Mapping Parameter** screen, where users can:
* Map input variables to query parameters
* Map query results into Business Objects
This mapping enables seamless data flow between database operations and other process activities.
***
### Best Practices
* Use **JNDI** connections for production deployments
* Avoid hard‑coding credentials when possible
* Validate SQL queries carefully to prevent runtime errors
* Map only required columns to reduce memory usage
* Clearly define Business Object mappings for maintainability
***
### Summary
The **Database Task** enables direct database interaction within ONEWEB process workflows.
Key features:
* Supports SELECT, INSERT, UPDATE, DELETE
* Flexible connection options (JNDI, JDBC)
* Full input/output parameter mapping
* Seamless integration with Business Objects
* Essential for data‑driven business processes
Proper configuration of the Database Task ensures **reliable, secure, and maintainable database integration** in Process Designer.
---
