# Integration Verification

After installing the ONEWEB Integration Components, the **Integration layer** should be verified to ensure that microflow design and integration features are functioning correctly.

This verification focuses on **Microflow Designer**, which is used to design backend services, APIs, and integration logic between ONEWEB and external systems.

***

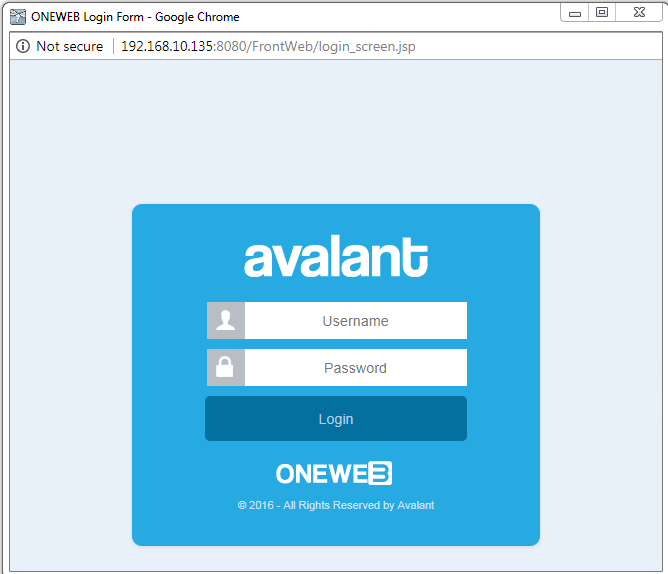

#### Verify Microflow Designer Access

Open a web browser and log in to the ONEWEB platform using the following URL:

```
http://<Application Server IP>:<Port>/FrontWeb
```

A successful login confirms that:

* Application Server is running
* Authentication services are available
* Integration UI components are accessible

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FMtIjbFrgjFPNqH8AwI7P%2F0?alt=media" alt=""><figcaption></figcaption></figure>

***

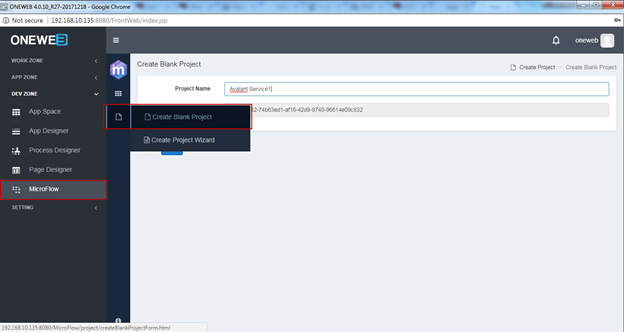

#### Create a New Microflow Project

Once logged in:

1. Navigate to **Microflow**
2. Select **Create Blank Project**

This step verifies that:

* Microflow Designer is deployed correctly
* Database connectivity for integration metadata is working

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FnYTj8AYezCUT4iXmJV0j%2F1?alt=media" alt=""><figcaption></figcaption></figure>

***

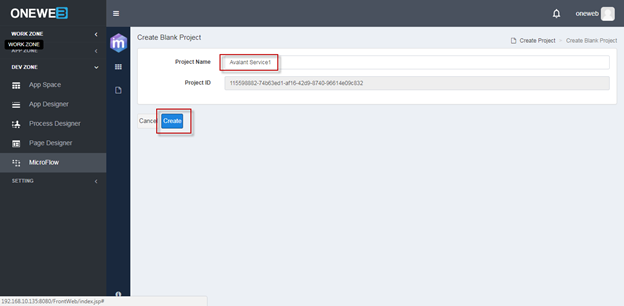

#### Create a Sample Integration Service

Create a new microflow or service with the following name:

```
XXX Service
```

This confirms that:

* New integration services can be created
* Microflow project configuration can be saved successfully

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FOuJfssoEar7q1PlLx0BJ%2F2?alt=media" alt=""><figcaption></figcaption></figure>

***

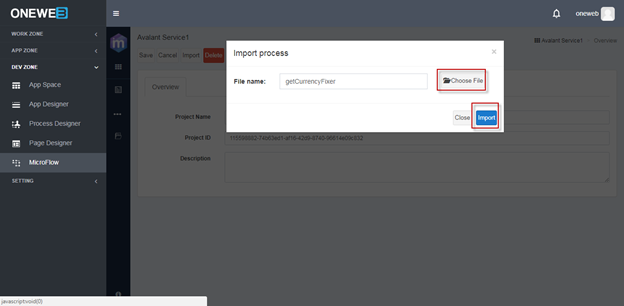

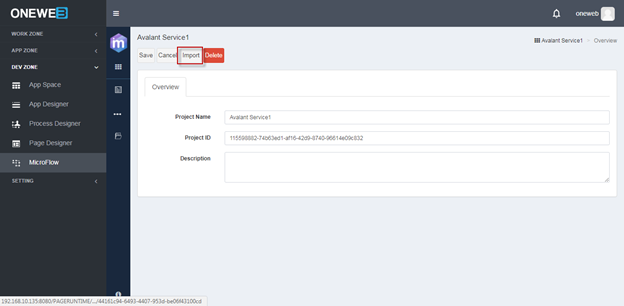

#### Import Microflow Definition

Import the predefined microflow definition as follows:

1. Navigate to **Import**
2. Choose the file **`getCurrencyFixer`**
3. Click **Import**

This step verifies that:

* File upload functionality is operational
* Microflow import logic is working
* Integration artifacts can be managed by the platform

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FwUbwcphKvE1ia752W0DK%2F3?alt=media" alt=""><figcaption></figcaption></figure>

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2Fl0yrCfEXBczsYG2MXgie%2F4?alt=media" alt=""><figcaption></figcaption></figure>

***

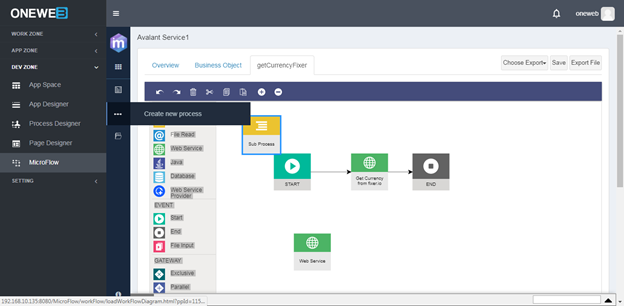

#### Open Microflow Design Tool

After the import is complete:

* Open the microflow in the **design tool**

You should see the **getCurrencyFixer** service displayed in the design canvas.

This confirms that:

* Visual microflow editor is functioning
* Integration logic can be viewed and edited
* Microflow Designer UI is fully operational

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2F0DiIW8qO0A5AKKIq6kuX%2F5?alt=media" alt=""><figcaption></figcaption></figure>

***

#### Verification Result

If all steps above complete successfully, it confirms that:

* ONEWEB Microflow Designer is accessible
* Integration projects can be created and stored
* Microflow definitions can be imported and managed
* Visual integration design tools are working correctly

The ONEWEB Integration Components are now verified and ready for:

* Backend service development
* API and system integration
* Runtime execution verification (Microflow Server)


---
