# Application Verification

After completing the ONEWEB platform installation, the **Application layer** should be verified to ensure that design‑time functionality is working correctly.

This verification focuses on **App Designer**, which is a core component used to manage application metadata, entities, and UI structure.

***

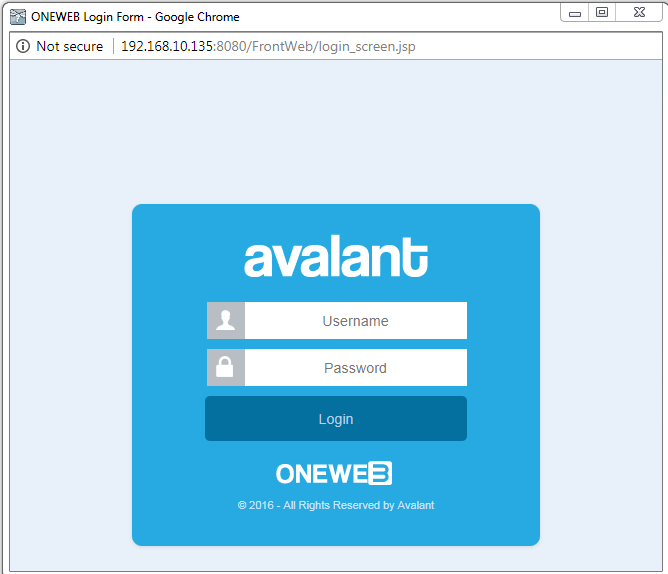

#### Verify App Designer Access

Open a web browser and log in to the ONEWEB application using the following URL:

```
http://<Application Server IP>:<Port>/FrontWeb
```

A successful login confirms that:

* ONEWEB Application Server is running
* IAM and authentication services are functioning
* Application UI is accessible

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FeNeUyc3opzGuTlcx9jTi%2F0?alt=media" alt=""><figcaption></figcaption></figure>

***

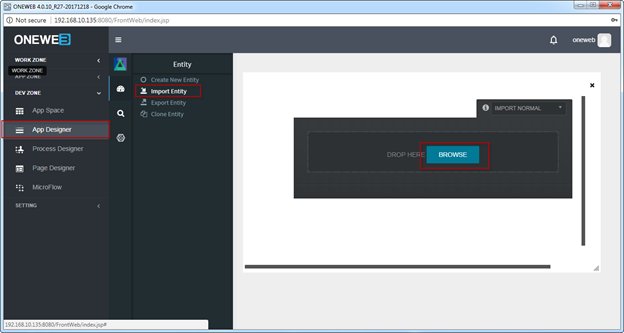

#### Verify Entity Management in App Designer

Once logged in:

1. Navigate to **App Designer**
2. Select **Import Entity**

This verifies that:

* App Designer is properly deployed
* Database connectivity for design‑time operations is working

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FcJNGglVGVYTvgeP56BUz%2F1?alt=media" alt=""><figcaption></figcaption></figure>

***

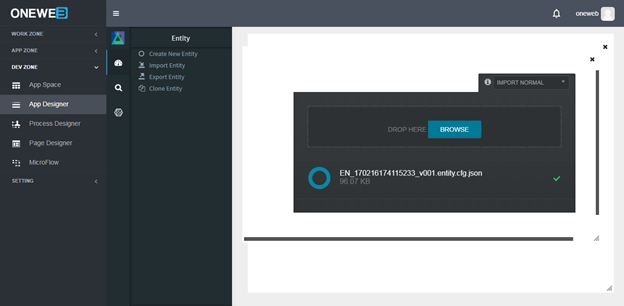

#### Import Sample Entity Configuration

Import the following entity configuration file:

```
EN_v001.entity.cfg.json
```

Successful import confirms that:

* Entity configuration APIs are operational
* App Designer can read and write metadata to the database

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FCOBVsEvpmwe6b0gWtpbf%2F2?alt=media" alt=""><figcaption></figcaption></figure>

***

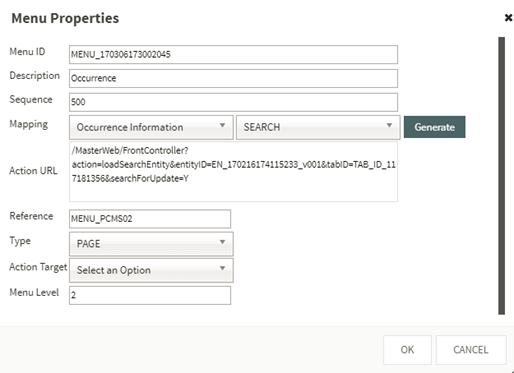

#### Verify Menu Configuration

After importing the entity:

1. Go to **App Designer**
2. Navigate to **Menu Configuration**
3. Create a new menu under the **APP Zone**

This step verifies that:

* UI configuration features are functional
* Application metadata changes can be saved and managed

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FjDwg1sTXIOj1WAhqXjsT%2F3?alt=media" alt=""><figcaption></figcaption></figure>

***

#### Verification Result

If all steps above complete successfully, it confirms that:

* ONEWEB Application Server is running correctly
* App Designer is deployed and accessible
* Database connectivity for application metadata is functional
* Core design‑time features are working as expected

The ONEWEB platform is now ready for:

* Application modeling
* UI and menu configuration
* Further verification of Process and Integration components


---
