# Install ONEWEB Process Server

This section describes how to **deploy the ONEWEB Process Server (Process Runtime / BPM Runtime)** on WildFly using the **WildFly Management Console**.

The Process Server is responsible for executing workflows, business processes, and runtime process logic created using ONEWEB Process Designer.\
Before deployment, specific **database configuration values** must be prepared to ensure correct runtime behavior.

***

#### Prerequisite: Database Configuration for Process Server

Before deploying the Process Server, configure the following values in the database table:

```
bpm.wf_t0_property
```

These properties define logging configuration and class loader behavior for the process runtime.

| Property Name             | Property Value                      | Description                                    |
| ------------------------- | ----------------------------------- | ---------------------------------------------- |
| `bpm.ge.log4j.properties` | `/<oneweb>/common/log4j.properties` | Log4j configuration path for Process Server    |
| `bpm.ge.classLoader.urls` | `/<oneweb>/pd/Files/`               | Upload directory for process‑related artifacts |

> Ensure that the referenced directories exist and that the application server has appropriate read/write permissions.

***

#### Step 1: Access WildFly Management Console

Log in to the **WildFly Management Console** using a web browser.

By default, the console is available at:

```
http://<Application Server IP>:9990
```

Use an administrator account with deployment privileges.

***

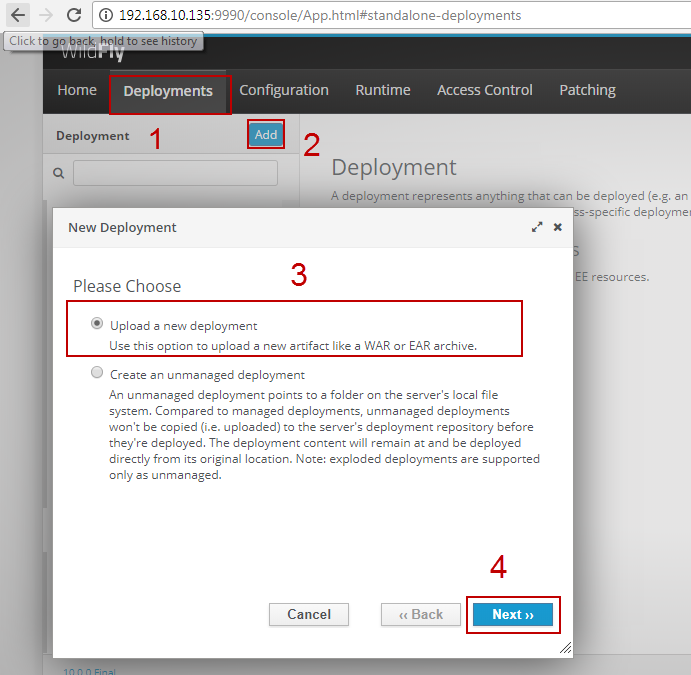

#### Step 2: Navigate to the Deployment Panel

1. From the Management Console dashboard, navigate to the **Deployment** panel
2. Click **Add** to deploy a new application archive

The Deployment panel is highlighted in the example below:

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FxMzeEwz8bdsaIX45Ud3H%2F0?alt=media" alt=""><figcaption></figcaption></figure>

***

#### Step 3: Upload the Process Server WAR File

1. Select **Upload new deployment**
2. Click **Next**
3. Choose the ONEWEB Process Server WAR file

The package name follows this format:

```
ONEWEB.PR.x.x.x.x.YYMMDD24HHMM.wildfly.war
```

Example upload screen:

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2Fh17hCGYq3KH4RikmGn5g%2F1?alt=media" alt=""><figcaption></figcaption></figure>

After selecting the file, click **Next** to continue.

***

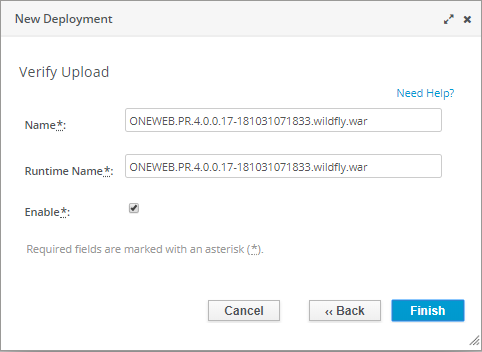

#### Step 4: Enable the Deployment

1. Select **Enable** to activate the Process Server immediately after deployment
2. Click **Finish** to complete the deployment process

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2F7h4prIUEJo4d4VOm0YkC%2F2?alt=media" alt=""><figcaption></figcaption></figure>

Wait until the confirmation message indicates that the application package has been deployed successfully.

***

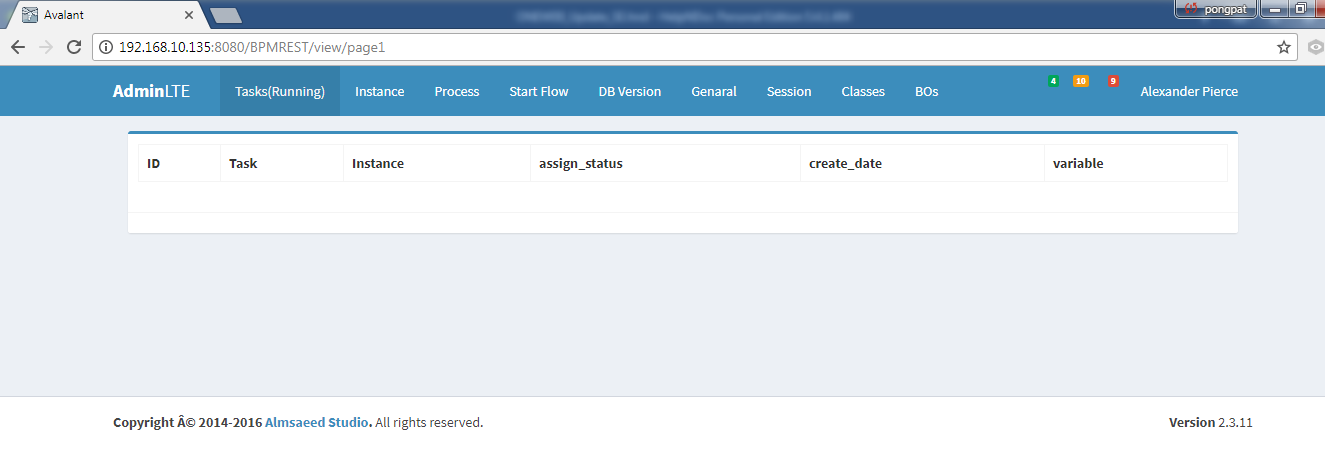

#### Step 5: Verify Process Server Deployment

After deployment is complete, verify that the Process Server runtime is accessible.

Open a web browser and navigate to:

```
http://<Application Server IP>:<Port>/BPMREST
```

A successful response confirms that the ONEWEB Process Server has been deployed and initialized correctly.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FqmkI2am82KdGyC0pix1r%2F3?alt=media" alt=""><figcaption></figcaption></figure>

***

#### Deployment Result

After completing the above steps:

* ONEWEB Process Server is deployed on WildFly
* Workflow and business process execution services are active
* Integration with Process Designer and BPM components is enabled
* The platform is ready to execute process‑driven applications


---
