# Install ONEWEB Process Designer

This section describes how to **deploy the ONEWEB Process Designer** on WildFly using the **WildFly Management Console**.

ONEWEB Process Designer provides design‑time capabilities for modeling workflows, processes, and service orchestration.\
Before deploying the Process Designer application, specific **database configuration values** must be prepared to ensure correct integration with other ONEWEB components.

***

#### Prerequisite: Database Configuration for Process Designer

Before deployment, configure the following values in the database table:

```
pd.ms_project_config
```

These values define data sources, file storage locations, and integration endpoints used by the Process Designer.

| Configuration Name         | Configuration Value                               | Description                                                 |
| -------------------------- | ------------------------------------------------- | ----------------------------------------------------------- |
| `DEPLOYMENT_JNDI`          | `java:/jdbc/bpm`                                  | Datasource configuration for process deployment             |
| `FOLDER_UPLOAD_JAR`        | `/<oneweb>/pd/Files/`                             | Upload directory for JAR and Process Designer applications  |
| `FOLDER_UPLOAD_WSDL`       | `/<oneweb>/pd/Files/`                             | Upload directory for WSDL and Process Designer applications |
| `AD_GET_ENTITY_URL`        | `http://localhost:8080/EAFUIWeb/api/list/entity`  | URL reference to EAF Master application entities            |
| `AD_GET_ENTITY_MODULE_URL` | `http://localhost:8080/EAFUIWeb/api/list/module/` | URL reference to EAF Master application modules             |
| `AD_USERNAME`              | `onewebadmin`                                     | ONEWEB administrator username                               |
| `AD_PASSWORD`              | `password`                                        | ONEWEB administrator password                               |
| `DEPLOYMENT_DB_DRIVER`     | `org.postgres.jdbc.Driver`                        | Database driver used for this environment                   |

> Ensure that referenced directories exist and that the application server has sufficient read/write permissions.

***

#### Step 1: Access WildFly Management Console

Log in to the **WildFly Management Console** using a web browser.

By default, the console is available at:

```
http://<Application Server IP>:9990
```

Ensure that you are logged in using an administrator account with deployment privileges.

***

#### Step 2: Navigate to the Deployment Panel

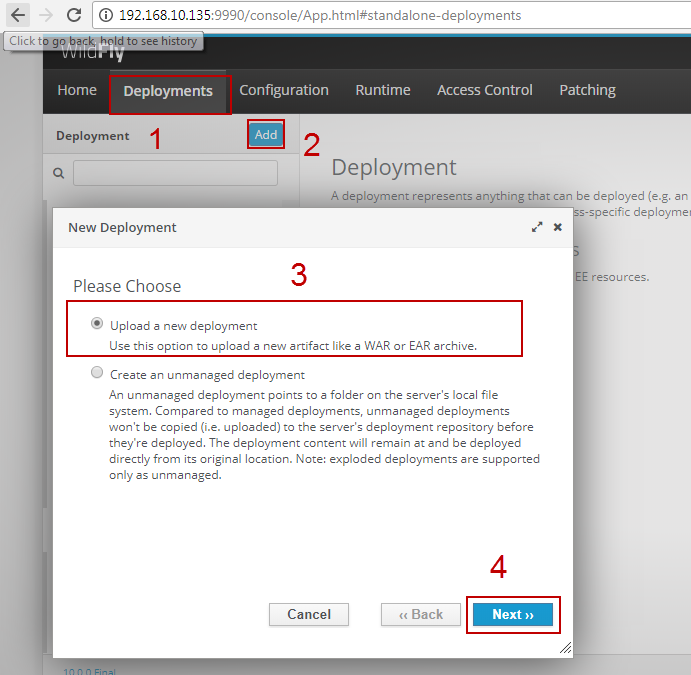

1. From the Management Console dashboard, navigate to the **Deployment** panel
2. Click **Add** to deploy a new application archive

The Deployment panel is highlighted in the example below:

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FM5cUxIWQD9rTbUEywaar%2F0?alt=media" alt=""><figcaption></figcaption></figure>

***

#### Step 3: Upload the Process Designer WAR File

1. Select **Upload new deployment**
2. Click **Next**
3. Choose the ONEWEB Process Designer WAR file

The package name follows this format:

```
ONEWEB.PD.x.x.x.x.YYMMDD24HHMM.wildfly.war
```

Example upload screen:

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FXbkgEz6pwIwVz52zeFJG%2F1?alt=media" alt=""><figcaption></figcaption></figure>

After selecting the file, click **Next** to continue.

***

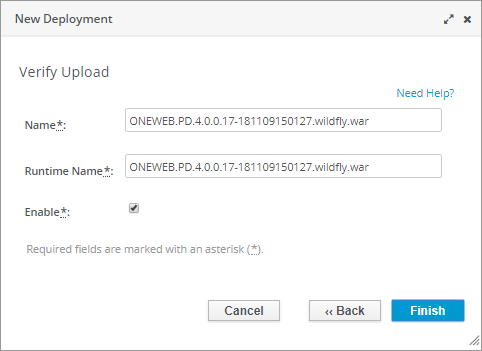

#### Step 4: Enable the Deployment

1. Select **Enable** to activate the Process Designer immediately after deployment
2. Click **Finish** to complete the deployment process

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FpgGh7ah8PmxsbpzfCe2n%2F2?alt=media" alt=""><figcaption></figcaption></figure>

Wait until the confirmation message indicates that the application package has been deployed successfully.

***

#### Step 5: Verify Process Designer Deployment

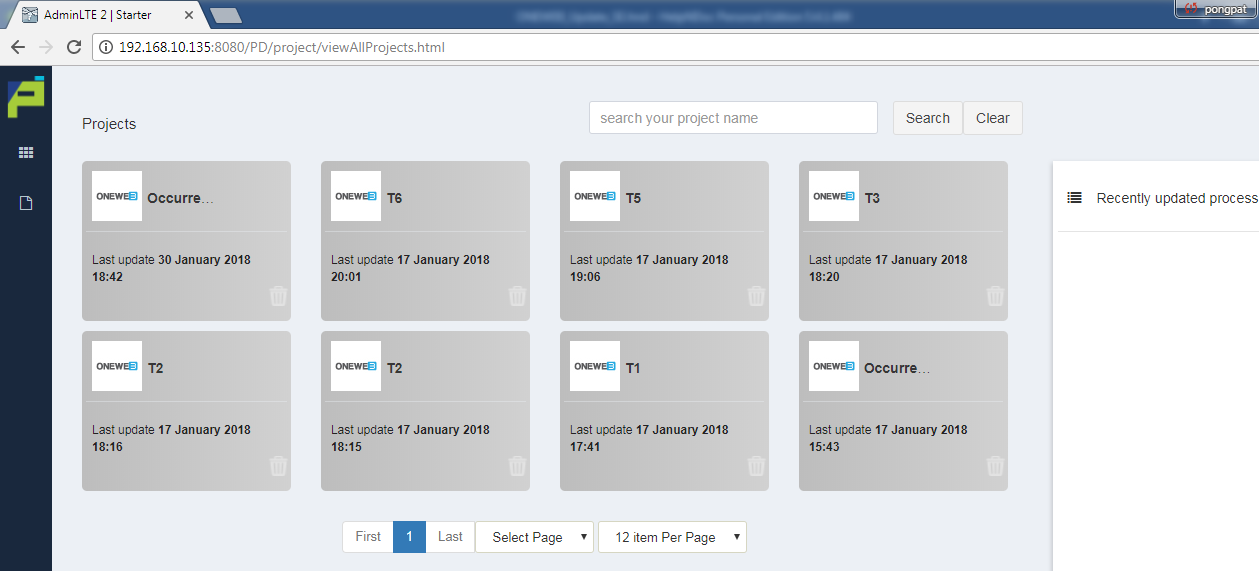

After deployment is complete, verify that the Process Designer is accessible.

Open a web browser and navigate to:

```
http://<Application Server IP>:<Port>/PD
```

A successful load of the Process Designer interface confirms that the deployment was completed correctly.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2Fn4trGyRK7V170YT3QvxC%2F3?alt=media" alt=""><figcaption></figcaption></figure>

***

#### Deployment Result

After completing the above steps:

* ONEWEB Process Designer is deployed on WildFly
* Process modeling and workflow design features are available
* Integration with Application Designer and runtime components is enabled
* The platform is ready for deploying Process Runtime components


---
