# Install ONEWEB Microflow Server

This section describes how to **deploy the ONEWEB Microflow Server (Microflow Runtime)** on WildFly using the **WildFly Management Console**.

The Microflow Server is responsible for executing integration logic, backend services, and microflows designed using the ONEWEB Microflow Designer.\
Before deploying the runtime component, specific **database configuration values** must be prepared to ensure proper logging and class loading behavior.

***

#### Prerequisite: Database Configuration for Microflow Server

Before deploying the Microflow Server, configure the following values in the database table:

```
bpm.wf_t0_property
```

These properties define logging configuration and class loader paths used by the Microflow runtime.

| Property Name             | Property Value                      | Description                                   |
| ------------------------- | ----------------------------------- | --------------------------------------------- |
| `bpm.ge.log4j.properties` | `/<oneweb>/common/log4j.properties` | Log4j configuration path for Microflow Server |
| `bpm.ge.classLoader.urls` | `/<oneweb>/pd/Files/`               | Upload directory for Microflow artifacts      |

> Ensure that the specified directories exist and that the application server has sufficient read/write permissions.

***

#### Step 1: Access WildFly Management Console

Log in to the **WildFly Management Console** using a web browser.

By default, the console is available at:

```
http://<Application Server IP>:9990
```

Use an administrator account with deployment privileges.

***

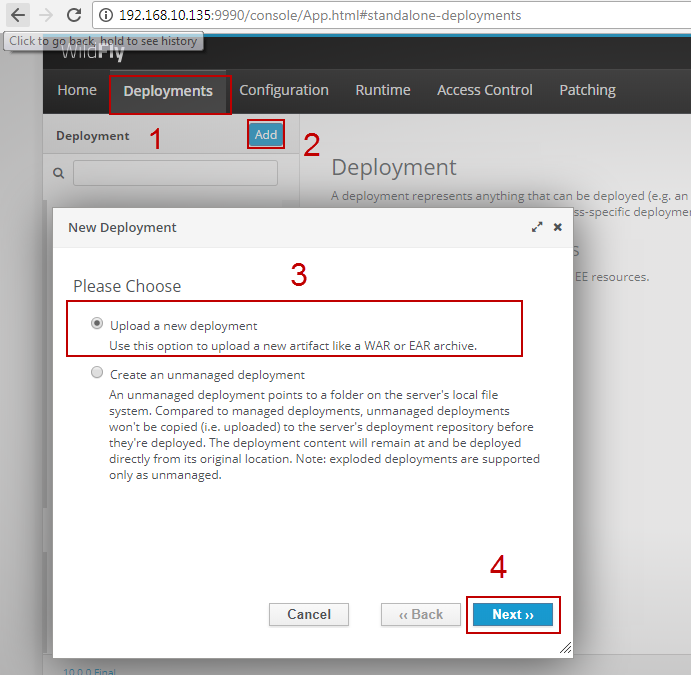

#### Step 2: Navigate to the Deployment Panel

1. From the Management Console dashboard, navigate to the **Deployment** panel
2. Click **Add** to deploy a new application archive

The Deployment panel is highlighted in the example below:

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FNR5aYpIi3tuFKhWll6P7%2F0?alt=media" alt=""><figcaption></figcaption></figure>

***

#### Step 3: Upload the Microflow Server WAR File

1. Select **Upload new deployment**
2. Click **Next**
3. Choose the ONEWEB Microflow Server WAR file

The package name follows this format:

```
ONEWEB.MFR.x.x.x.x.YYMMDD24HHMM.wildfly.war
```

Example upload screen:

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2Fa8uTVTNGaXPbYaIzWduP%2F1?alt=media" alt=""><figcaption></figcaption></figure>

After selecting the file, click **Next** to continue.

***

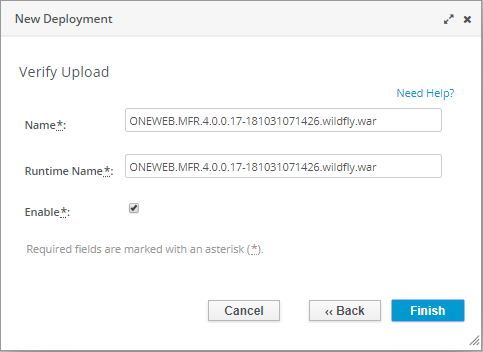

#### Step 4: Enable the Deployment

1. Select **Enable** to activate the Microflow Server immediately after deployment
2. Click **Finish** to complete the deployment process

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2F4GsPZMqL4tN3uINEmXNr%2F2?alt=media" alt=""><figcaption></figcaption></figure>

Wait until the confirmation message indicates that the application package has been deployed successfully.

***

#### Step 5: Verify Microflow Server Deployment

After deployment is complete, verify that the Microflow Server runtime is accessible.

Open a web browser and navigate to:

```
http://<Application Server IP>:<Port>/MicroFlowRest
```

A successful response confirms that the ONEWEB Microflow Server has been deployed and initialized correctly.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2Fsq4VYk4I0nfFdA4Gnv3n%2F3?alt=media" alt=""><figcaption></figcaption></figure>

***

#### Deployment Result

After completing the above steps:

* ONEWEB Microflow Server is deployed on WildFly
* Integration and backend execution services are active
* Microflows designed in Microflow Designer can be executed
* The platform is ready to support system integrations and API logic


---
