# Install ONEWEB IAM

This section describes how to **deploy the ONEWEB Identity and Access Management (IAM)** component on WildFly using the **WildFly Management Console**.

ONEWEB IAM is responsible for **authentication, authorization, and user management** across the ONEWEB platform.\
Before deployment, required database configuration values must be prepared to ensure correct logging and class loading behavior.

***

#### ONEWEB IAM Application Packages

The ONEWEB IAM feature consists of multiple application archives.\
The primary IAM REST service package is shown below:

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FmULL8YGcQ99irn3GgVeu%2F0?alt=media" alt=""><figcaption></figcaption></figure>

***

#### Prerequisite: Database Configuration for IAM

Before deploying ONEWEB IAM, configure the following values in the database table:

```
bpm.wf_t0_property
```

These properties define logging and class loader paths used by the IAM runtime.

| Property Name             | Property Value                      | Description                                |
| ------------------------- | ----------------------------------- | ------------------------------------------ |
| `bpm.ge.log4j.properties` | `/<oneweb>/common/log4j.properties` | Log4j configuration path for IAM           |
| `bpm.ge.classLoader.urls` | `/<oneweb>/pd/Files/`               | Upload directory for IAM‑related artifacts |

> Ensure that the referenced directories exist and that the application server has sufficient read/write permissions.

***

#### Step 1: Access WildFly Management Console

Log in to the **WildFly Management Console** using a web browser.

By default, the console is available at:

```
http://<Application Server IP>:9990
```

Use an administrator account with deployment privileges.

***

#### Step 2: Navigate to the Deployment Panel

1. From the Management Console dashboard, navigate to the **Deployment** panel
2. Click **Add** to deploy a new application archive

The Deployment panel is highlighted in the example below:

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FDDqA8RnOk8LO8i7ECwQd%2F1?alt=media" alt=""><figcaption></figcaption></figure>

***

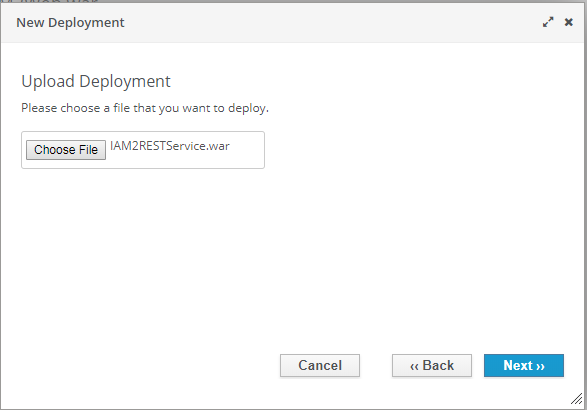

#### Step 3: Upload the IAM REST Service WAR File

1. Select **Upload new deployment**
2. Click **Next**
3. Choose the ONEWEB IAM REST Service WAR file

The package name follows this format:

```
IAM2RESTService.x.x.x.x.YYMMDD24HHMM.wildfly.war
```

Example upload screen:

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FkXtJiHnIai4bguBhrWNE%2F2?alt=media" alt=""><figcaption></figcaption></figure>

After selecting the file, click **Next** to continue.

***

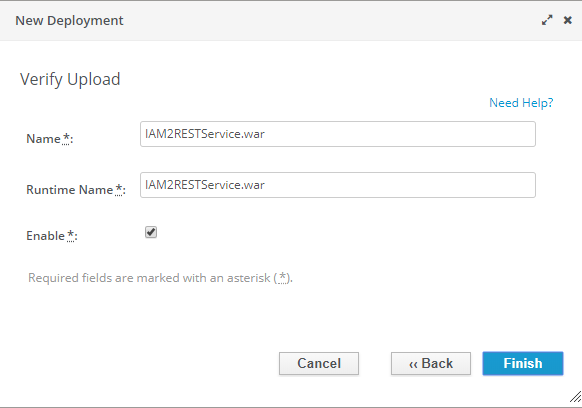

#### Step 4: Enable the Deployment

1. Select **Enable** to activate the IAM service immediately after deployment
2. Click **Finish** to complete the deployment process

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2Fr4HIWrAf3tDSk1QhSCKl%2F3?alt=media" alt=""><figcaption></figcaption></figure>

Wait until the confirmation message indicates that the application package has been deployed successfully.

***

#### Step 5: Deploy Additional IAM Packages

After the primary IAM REST service is deployed successfully, deploy the remaining IAM application packages using the **same deployment process**.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2Fje9uePXXlSBnbJOGzvBR%2F4?alt=media" alt=""><figcaption></figcaption></figure>

Ensure that all required IAM packages are enabled.

***

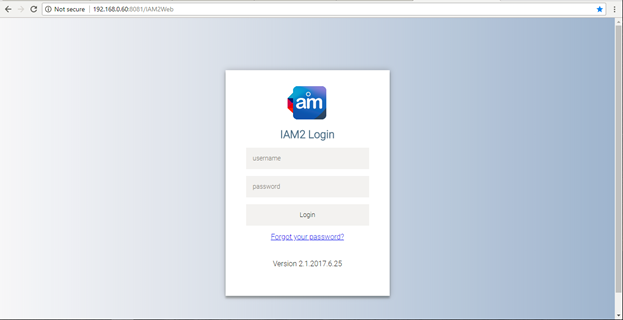

#### Step 6: Verify IAM Deployment

After all IAM components are deployed, verify that the IAM web interface is accessible.

Open a web browser and navigate to:

```
http://<Application Server IP>:<Port>/IAM2Web
```

A successful load of the IAM interface confirms that the ONEWEB IAM component has been deployed and initialized correctly.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FjjKEWjsmRRPNlNRxp58w%2F5?alt=media" alt=""><figcaption></figcaption></figure>

***

#### Deployment Result

After completing the above steps:

* ONEWEB IAM is deployed on WildFly
* Authentication and authorization services are active
* User and role management is available
* The platform security foundation is ready for use by other ONEWEB components


---
