# Install ONEWEB Application Server

This section describes how to **deploy the ONEWEB Application Server runtime** on WildFly using the **WildFly Management Console**.

The ONEWEB Application Server provides the core runtime services for executing applications, processes, and backend logic. Before deploying the application server, certain configuration values must be prepared in the database.

***

#### Prerequisite: Database Configuration

Before deploying the ONEWEB Application Server, ensure that the following records are configured in the database table:

```
eaf_master.m_metab_constant
```

These values define logging and file upload locations used by the runtime.

| Constant Name       | Constant Value                      | Description                                  |
| ------------------- | ----------------------------------- | -------------------------------------------- |
| `LOG_CONFIG_FRONT`  | `/<oneweb>/common/log4j.properties` | Log4j configuration path for FrontController |
| `LOG_CONFIG_MASTER` | `/<oneweb>/common/log4j.properties` | Log4j configuration path for Master          |
| `UPLOAD_REPOSITORY` | `/<oneweb>/FileServerEAF`           | Upload directory for application files       |
| `UPLOAD_URL`        | `/<oneweb>/FileServerEAF`           | Upload URL for application files             |

> Ensure that the specified directories exist and have appropriate filesystem permissions for the application server.

***

#### Step 1: Access WildFly Management Console

Log in to the **WildFly Management Console** using a web browser.

By default, the console is available at:

```
http://<Application Server IP>:9990
```

Use an administrator account with deployment privileges.

***

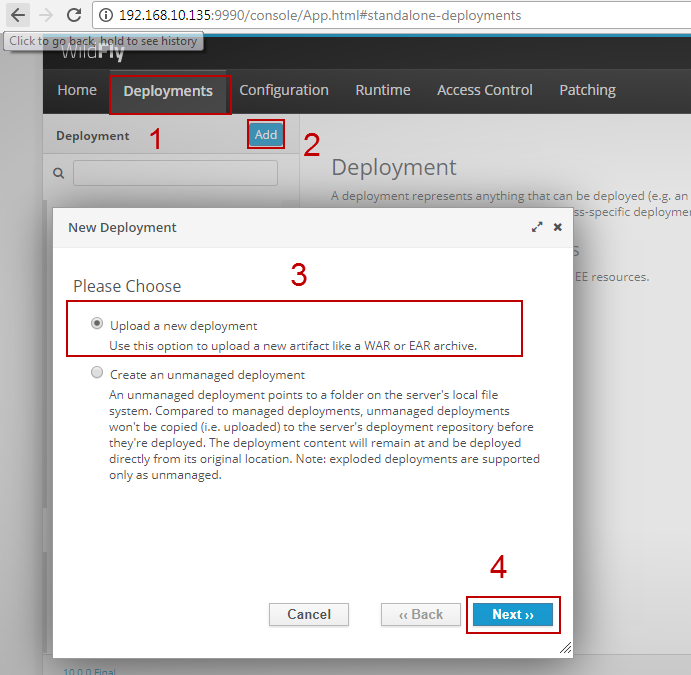

#### Step 2: Navigate to the Deployment Panel

1. From the Management Console dashboard, navigate to the **Deployment** panel
2. Click **Add** to deploy a new application archive

The Deployment panel is highlighted in the example below:

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2F2jMCAeRBQU67zOzVpZVJ%2F0?alt=media" alt=""><figcaption></figcaption></figure>

***

#### Step 3: Upload the Application EAR File

1. Select **Upload new deployment**
2. Click **Next**
3. Choose the ONEWEB Application Server EAR file

The package name follows this format:

```
ONEWEB.AR.x.x.x.x.YYMMDD24HHMM.wildfly.ear
```

Example upload screen:

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2Ff0217gRxGJAuTC4TfWZD%2F1?alt=media" alt=""><figcaption></figcaption></figure>

After selecting the file, click **Next** to continue.

***

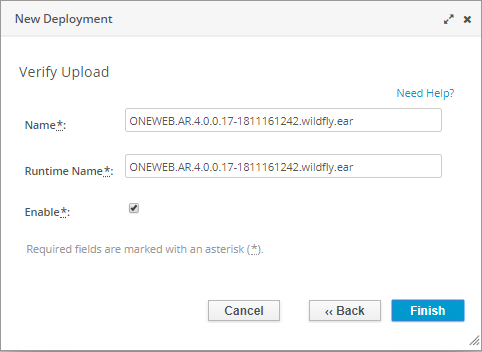

#### Step 4: Enable the Deployment

1. Select **Enable** to activate the application immediately after deployment
2. Click **Finish** to complete the deployment process

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FqNArwGZBIpztGMjP1bHf%2F2?alt=media" alt=""><figcaption></figcaption></figure>

Wait until the confirmation message indicates that the application package has been deployed successfully.

***

#### Step 5: Verify Application Deployment

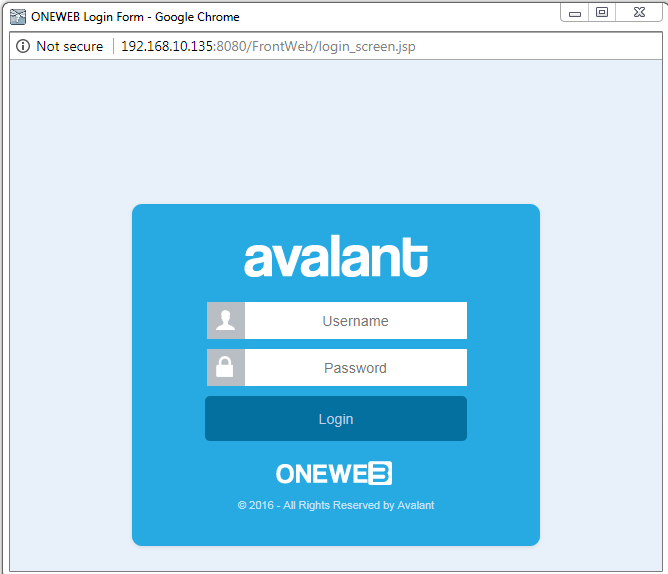

After deployment is complete, verify that the ONEWEB Application Server is accessible.

Open a web browser and navigate to:

```
http://<Application Server IP>:<Port>/FrontWeb
```

A successful response confirms that the ONEWEB Application Server runtime has been deployed correctly.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FtpdFykJYUA6wRdFFlJDv%2F3?alt=media" alt=""><figcaption></figcaption></figure>

***

#### Deployment Result

After completing the above steps:

* ONEWEB Application Server runtime is deployed on WildFly
* Core runtime services are active
* Logging and file upload paths are configured
* The platform is ready to execute ONEWEB applications and processes


---
