# Use Extension in Workflow

Once a **Custom Extension** is **enabled** in the application, it becomes available for use in process workflows.\
The extension appears as a **Custom Activity Node** alongside standard activity nodes in Process Designer.

Users can use a custom extension in the workflow **exactly like a built‑in activity node**.

***

### Purpose

Using extensions in workflows allows you to:

* Reuse custom logic across multiple processes
* Incorporate proprietary or advanced functionality into workflows
* Extend process behavior beyond standard activity nodes
* Maintain clean and modular process designs

***

### Using a Custom Extension in a Process

To use an extension in a workflow:

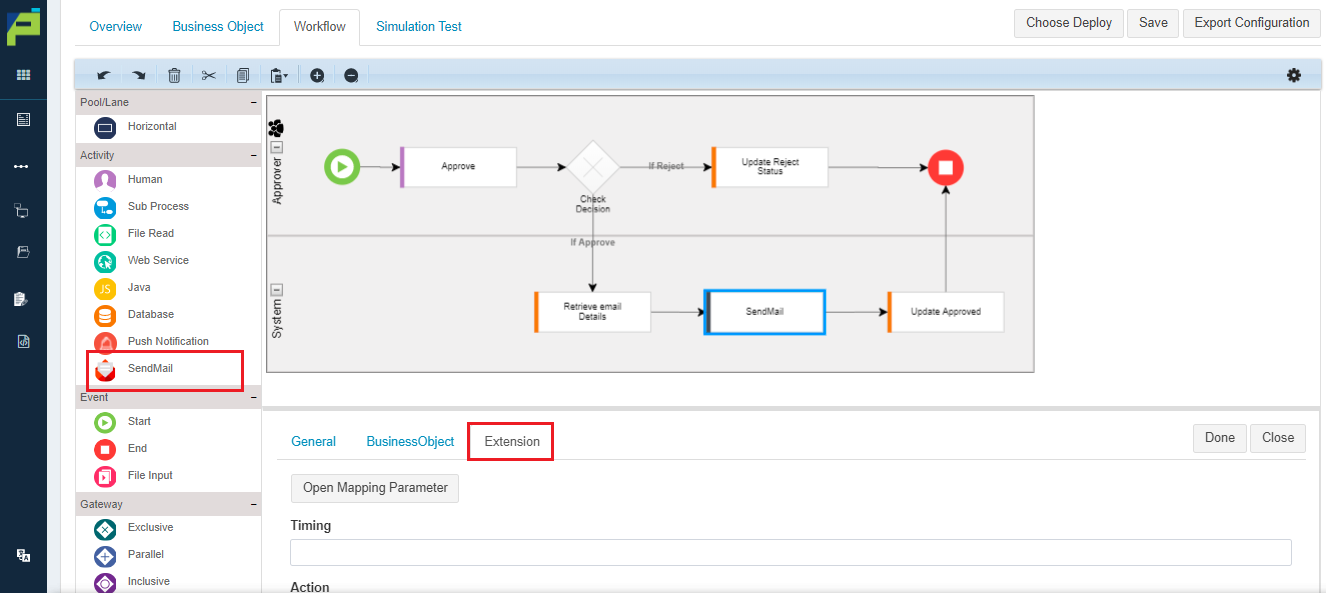

1. Open **Process Designer**
2. Go to the **Activity** tab in the node palette
3. Locate the installed **Custom Extension**
4. **Drag and drop** the extension node onto the process canvas

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FXOXaL487sewuEiaqwqA4%2F0?alt=media" alt=""><figcaption></figcaption></figure>

Once placed on the diagram, the extension node behaves like any other activity node.

***

### Configuring the Extension Node

After adding the extension node to the workflow, users can:

* Open the node configuration panel
* Configure **input parameters** defined in the extension
* Configure **output parameters** if applicable
* Map Business Objects for data exchange
* Set execution‑specific properties exposed by the extension

All configuration options are defined by the extension’s **InputModel**, **OutputModel**, and JSON configuration.

***

### Data Mapping and Integration

Custom extension nodes fully support:

* Business Object mapping
* Input and output parameter binding
* Interaction with other activity nodes
* Use within Gateways, Lanes, and Event flows

This allows extension nodes to integrate seamlessly into the overall process logic.

***

### Usage Guidelines

* Ensure the extension is **enabled** in the Extension Store before use
* Place extension nodes inside the appropriate **Lane**
* Clearly map input and output parameters
* Test workflows after adding or updating extensions
* Avoid deleting or disabling extensions already used in active processes

***

### Summary

Custom Extensions can be used in workflows just like native Process Designer activities.

Key points:

* Enabled extensions appear in the **Activity** tab
* Drag‑and‑drop usage on the process canvas
* Fully configurable with Business Objects and parameters
* Seamless integration with existing process logic
* Supports reuse across multiple workflows

Using Custom Extensions in workflows enables ONEWEB users to build **powerful, flexible, and reusable business processes** tailored to their specific enterprise needs.


---
