# Install Extension in Application

After successfully building the Extension **JAR file** from the workspace, the next step is to **install the extension into an application** so that it can be used as a **Custom Activity Node** in Process Designer.

Once installed, the extension becomes available in the Activity Nodes palette and can be reused across workflows within that application.

***

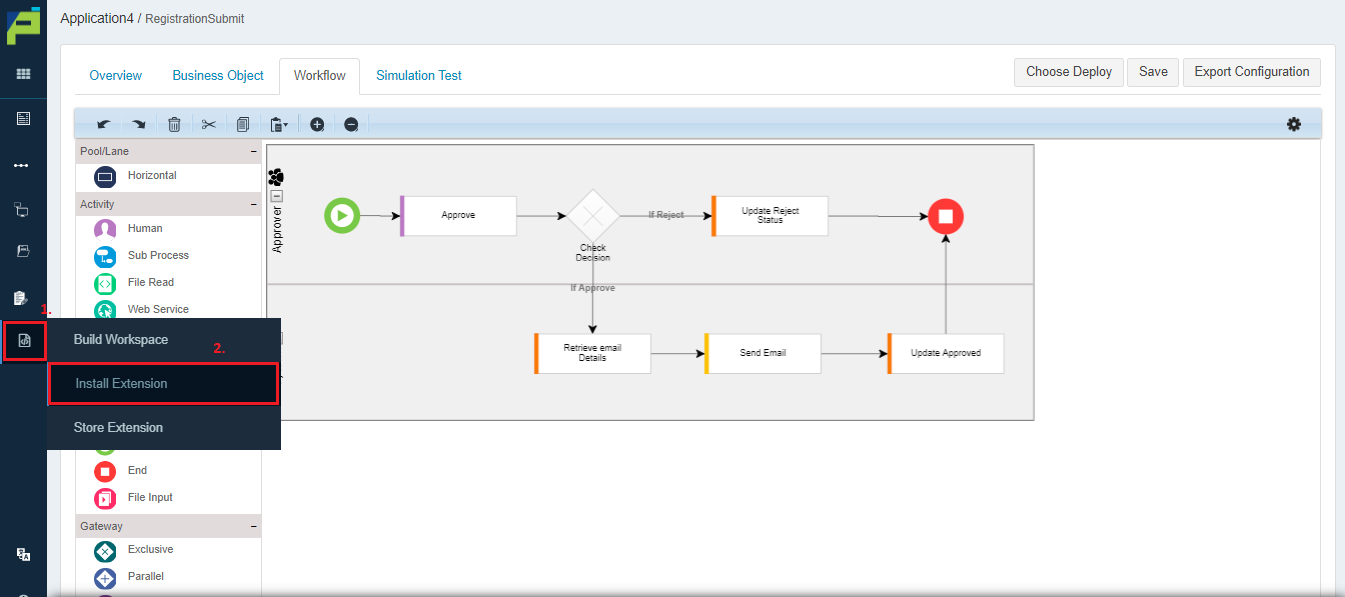

### Accessing the Install Extension Menu

To install an extension:

1. Open **Process Designer**
2. Click the **Extensions** icon ![](https://docs.oneweb.tech/oneweb/~gitbook/image?url=https%3A%2F%2F2015371994-files.gitbook.io%2F%7E%2Ffiles%2Fv0%2Fb%2Fgitbook-x-prod.appspot.com%2Fo%2Fspaces%252FMpDjHWFRUtZ5nJcSfVXd%252Fuploads%252F0Zz2aESePJZdzMyBPTxV%252F0%3Falt%3Dmedia\&width=300\&dpr=3\&quality=100\&sign=25f22e82\&sv=2)
3. Select **Install Extension**

The **Install Extension** page will be opened.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2F3s8pyaT5kotHYFAEUapo%2F1?alt=media" alt=""><figcaption></figcaption></figure>

***

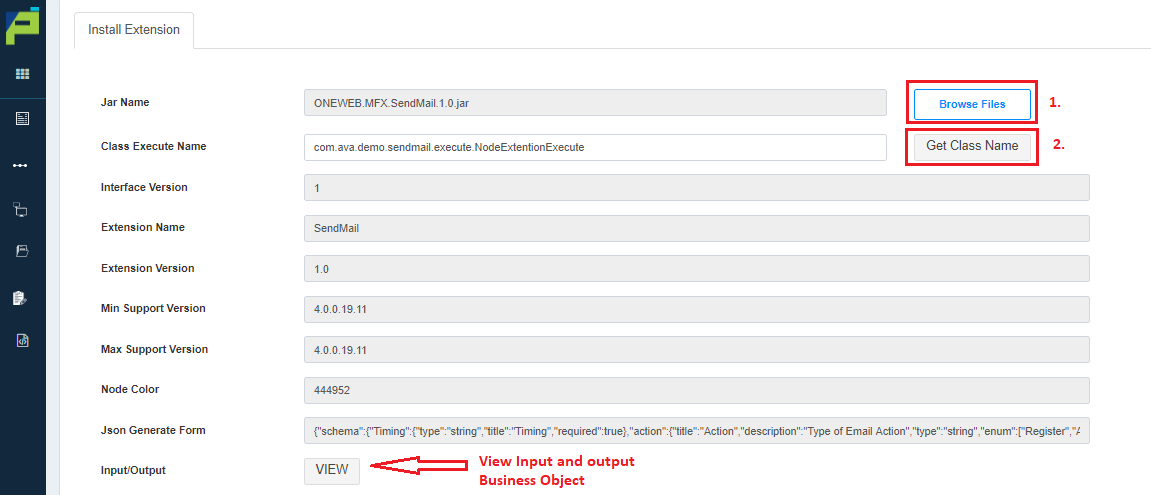

### Selecting the Extension JAR File

On the **Install Extension** page:

1. Browse and select the **JAR file** generated from the workspace build
2. Click the **Get Class Name** button

The system will automatically:

* Retrieve the execution class name
* Load extension metadata
* Populate other configuration details from the JAR file

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FwGEDXyI8qOv2hXNzSszK%2F2?alt=media" alt=""><figcaption></figcaption></figure>

Verify that all retrieved information is correct before proceeding.

***

### Previewing Extension Details

Before installation, users can preview the extension configuration to ensure correctness.

#### View Input & Output Models

* Click the **View** button to inspect:
  * Input Business Object
  * Output Business Object

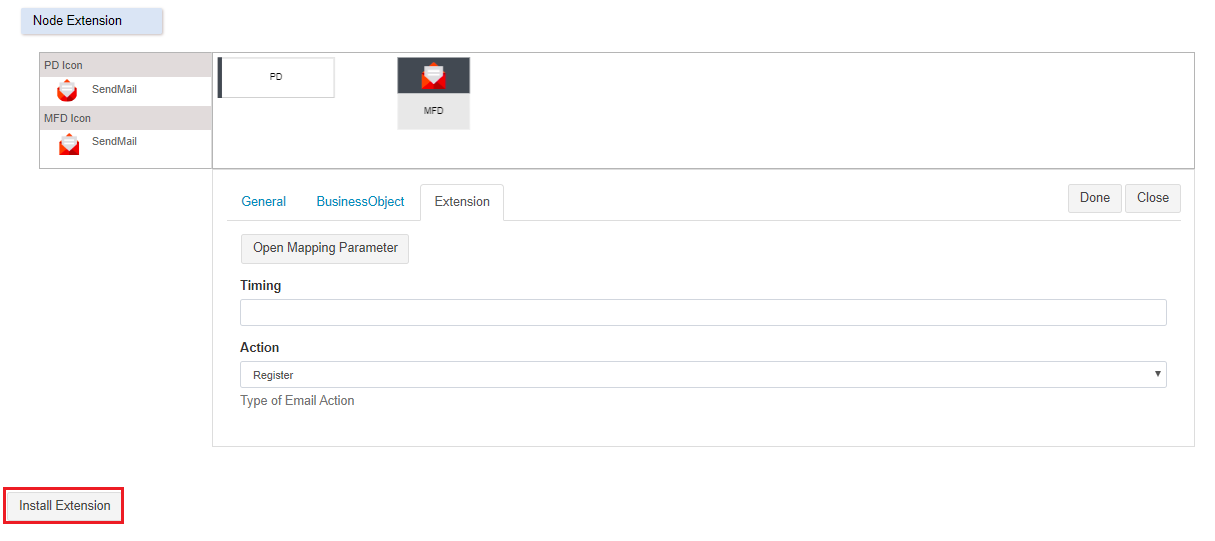

#### Node Preview

* The **Node Extension** section displays:
  * Custom node icon
  * Node color
  * Look and feel of the activity node in Process Designer

This preview helps validate both **functional** and **visual** aspects of the extension.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FCybbOFphJ95xFCwi0Pe6%2F3?alt=media" alt=""><figcaption></figcaption></figure>

***

### Installing the Extension

Once all details are verified:

1. Click the **Install Extension** button
2. The system installs the extension into the current application
3. A confirmation message is displayed indicating **successful installation**

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FOuJHIbRiPlesdDva55IY%2F4?alt=media" alt=""><figcaption></figcaption></figure>

***

### After Installation

After installation:

* The custom extension appears as an **Activity Node**
* It can be dragged and dropped into the Process Template Diagram
* The node behaves like a native activity node
* Input and output parameters can be mapped normally
* The extension can be used in multiple workflows within the application

***

### Usage Guidelines

* Install only tested and verified extension JARs
* Reinstall the extension when upgrading to a new version
* Ensure compatibility when updating existing extensions
* Validate workflows after installing or updating extensions
* Use meaningful versioning for extension JAR files

***

### Summary

Installing an extension makes a **Custom Activity Node** available for use in Process Designer.

Key points:

* Extensions are installed via **Extensions → Install Extension**
* Extension logic is loaded from a JAR file
* Class and metadata are retrieved automatically
* Users can preview input/output models and node UI
* Installed extensions are reusable within the application

This step completes the **Custom Extension lifecycle**, enabling developers to integrate reusable, enterprise‑specific functionality directly into ONEWEB process workflows.


---
