# Build Extension in Workspace

After creating and downloading the **Extension Workspace**, the next step is to **implement the custom logic** inside the workspace and package it as a JAR file that can be installed and used in ONEWEB.

The workspace serves as a **standard Java project template** that developers can extend using familiar Java and Maven tools.

***

### Preparing the Workspace

1. Copy the downloaded **workspace ZIP file** to a suitable directory on your machine
2. Extract (unzip) the workspace
3. Open the extracted project using any **Eclipse‑based IDE** with **Maven** installed
   * Examples: Eclipse IDE, Spring Tool Suite (STS)

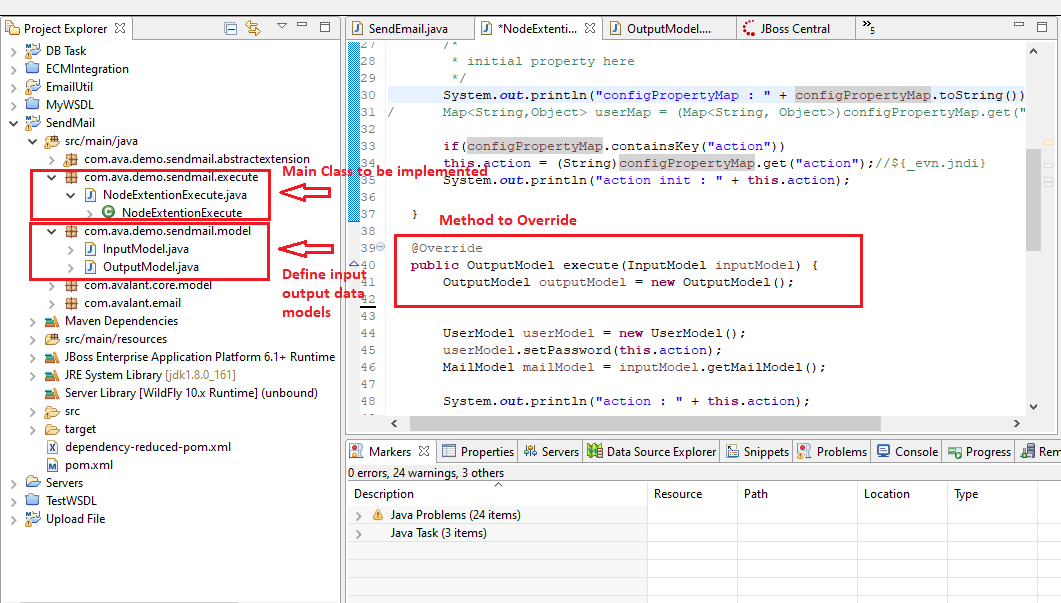

Once opened, the workspace behaves like a regular Maven‑based Java project.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FH0gAWtvfar3DIxxvaiS9%2F0?alt=media" alt=""><figcaption></figcaption></figure>

***

### Required Classes to Implement

To build a Custom Extension, the developer must implement **three mandatory classes** provided in the workspace.

> **Important Rule**\
> The **class names and package names of these three classes must not be changed**.

***

#### 1️. NodeExtentionExecute

* This is the **core execution class** of the custom node
* Developers must **override the `execute` method**
* All custom logic of the extension is implemented here

Responsibilities typically include:

* Reading input parameters
* Executing custom business logic
* Invoking external libraries or services
* Setting output values

***

#### 2️. InputModel

* Defines the **input Business Object** for the custom node
* Represents all data passed into the extension from the process
* Fields in this model must align with the JSON configuration defined during workspace creation

***

#### 3️. OutputModel

* Defines the **output Business Object** for the custom node
* Contains values that are returned to the process after execution
* Output fields can be mapped to downstream process activities

***

#### 4️. Supporting Classes (Optional)

* Developers may create **additional supporting classes** as needed
* These can include:
  * Utility classes
  * Service classes
  * Helper methods
* These classes behave like any normal Java project classes

✅ You are free to design and organize supporting classes as required\
❌ Do **not** rename or move the three mandatory classes listed above

***

### Building the Extension (Generating JAR)

Once development is complete:

1. Use **Maven build** to package the project
2. Run a standard Maven build command from the IDE or command line
3. Ensure the build completes successfully

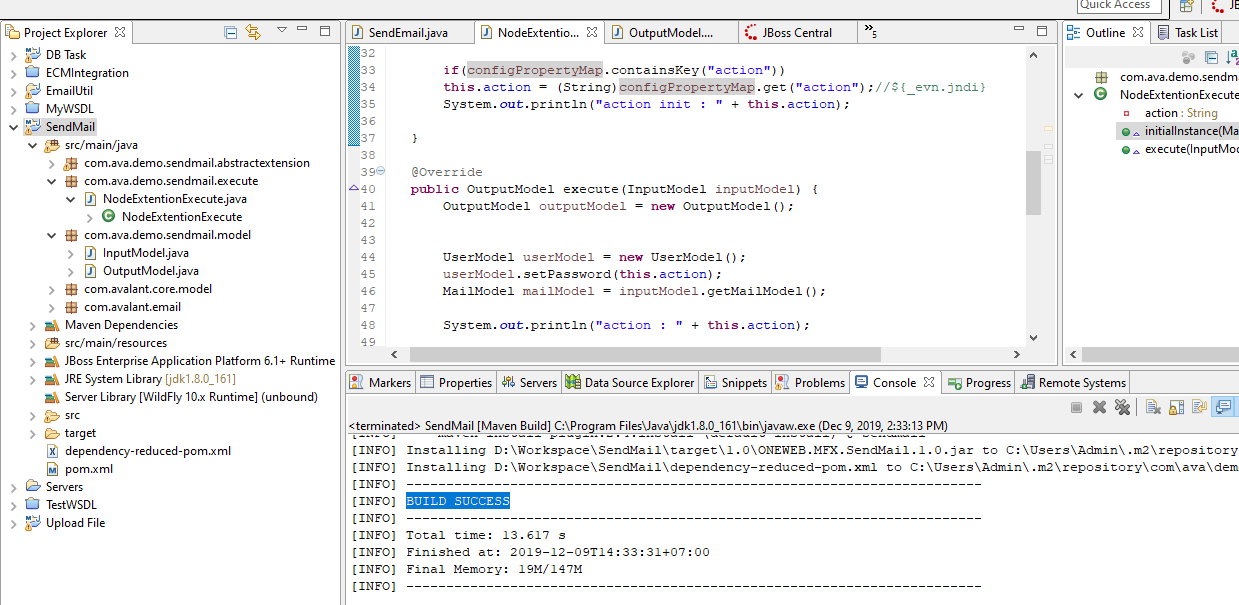

When the build succeeds:

* A **JAR file** is generated automatically
* The JAR file is located in the project’s **`target`** directory

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FCzabi9TkHyIQUImk6qur%2F1?alt=media" alt=""><figcaption></figcaption></figure>

This JAR file is the final **Custom Extension artifact**.

***

### Next Steps

After the JAR file is generated, it can be:

* Installed into an application
* Used as a **Custom Activity Node** in Process Designer
* Reused across multiple workflows
* Shared with other ONEWEB users

***

### Development Guidelines

* Keep the `execute` method focused and efficient
* Validate input parameters defensively
* Clearly define input and output models
* Handle exceptions gracefully
* Test the extension independently before installation
* Version your extension JAR carefully

***

### Summary

Building an extension in the workspace is the core development step for Custom Extensions.

Key points:

* Workspace is a Maven‑based Java project
* Three mandatory classes must be implemented
* Custom logic is written in `NodeExtentionExecute`
* Input and Output are defined via Business Models
* Supporting classes are allowed
* Maven build produces the final extension JAR

This approach allows developers to build **powerful, reusable, and enterprise‑grade custom activity nodes** that integrate seamlessly with ONEWEB Process Designer.


---
