# Normal Tab

A **Normal Tab** is used to design a Smart Form with a **single‑layer tab structure**.\
It is suitable for **simple or moderately complex forms**, where all sections can be organized within one main navigation level.

Normal Tab design enables users to include **multiple sections or modules** under the same tab without introducing nested (multi‑layer) navigation.

***

### Purpose of Normal Tab

Normal Tab is designed to:

* Create **simple, one‑page Smart Forms**
* Group multiple sections or modules under a single tab
* Reduce navigation complexity for end users
* Support forms that do not require hierarchical separation

This tab type is ideal when the form structure is straightforward and does not require nested categorization.

***

### Main Tab Concept

In a Normal Tab design:

* The **top‑level first tab** is always referred to as the **Main Tab**
* The Main Tab is **system‑defined**
* The **Tab Description** for the Main Tab defaults to **“Main”** and **cannot be edited**
* All sections and modules are placed within this Main Tab

***

### Normal Tab Configuration

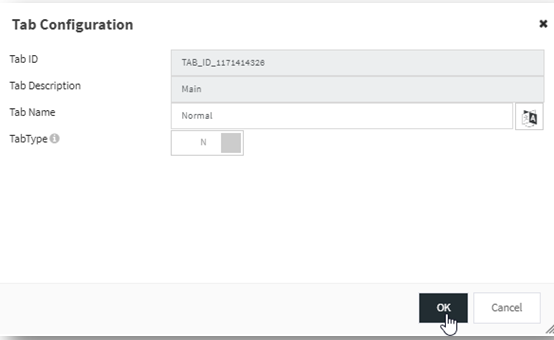

The following tab configuration settings are available for a Normal Tab:

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2Fc2WwQX4w59MjUVKb9GPu%2F0?alt=media" alt=""><figcaption></figcaption></figure>

#### Normal Tab Properties

| Tab Item            | Mandatory | Description                                             |
| ------------------- | --------- | ------------------------------------------------------- |
| **Tab ID**          | Yes       | Unique identifier generated automatically by the system |
| **Tab Description** | Yes       | Defaults to **Main** and cannot be modified             |
| **Table Name**      | Yes       | User‑defined tab name based on business requirement     |
| **TabType**         | No        | Reserved for internal or advanced configurations        |

***

### Designing Forms with Normal Tab

Within a Normal Tab, users can:

* Add **Modules** (1‑1, 1‑Many, Reusing Modules)
* Arrange sections vertically within the tab
* Design logical groupings using modules instead of nested tabs
* Apply consistent layouts for better user experience

This approach keeps form navigation **flat and intuitive**.

***

### Example: Normal Tab Usage

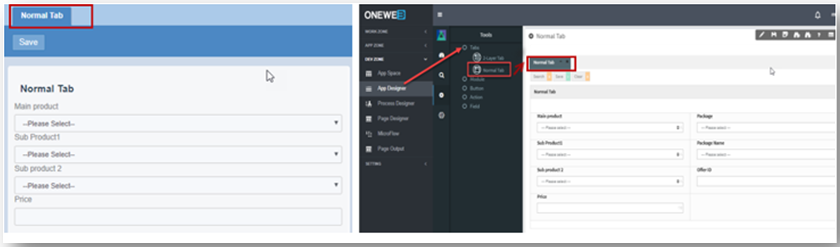

The example below illustrates how a Normal Tab appears in both:

* **Facade Screen (End‑User View)**
* **Configuration Screen (App Designer)**

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FW2u4VqyXBU8FTId9z2Cs%2F1?alt=media" alt=""><figcaption></figcaption></figure>

In this design:

* Users interact with a single tab
* All form elements are visible within one navigational context
* No nested or secondary tab navigation is required

***

### Usage Guidelines

* Use **Normal Tab** for simple or flat form structures
* Prefer modules over creating unnecessary tabs
* Keep Main Tab focused and well‑organized
* Avoid overcrowding the Main Tab with unrelated content
* Upgrade to **2‑Layer Tab** when structured separation is required

***

### Summary

The **Normal Tab** provides a clean and straightforward way to design Smart Forms with a **single‑layer navigation model**.

Key points:

* Supports one‑level tab navigation
* Main Tab is system‑defined and mandatory
* Ideal for simple and medium‑complexity forms
* Allows multiple modules within the same tab
* Improves usability by minimizing navigation complexity

Normal Tabs are best suited when simplicity and clarity are prioritized in Smart Form design.


---
