# Modules within an Entity
In ONEWEB, **Modules** are the structural building blocks within an **Entity** that define **where and how input fields are displayed** on a Smart Form.\
A module represents a logical subsection of a form and is responsible for layout, data binding, and interaction behavior.
Modules allow designers to organize fields into **clear, manageable sections**, improving both usability and maintainability of Smart Forms.
***
#### Role of Modules in Smart Forms
Module configuration provides the flexibility to:
* Design form layouts using **rows and columns**
* Control how user input is stored and retrieved
* Define how data is mapped to database tables
* Retrieve values dynamically using SQL queries
* Assemble fields visually using **drag‑and‑drop**
Each module requires configuration details such as:
* Database table name
* Primary or composite keys
* Sequences for record management
This makes modules the bridge between **UI layout**, **data persistence**, and **business logic**.
***
#### Fields within a Module
Fields are the **individual input elements** placed inside a module layout.\
Each field is designed to capture or display a specific type of data.
ONEWEB Smart Forms support the following field types:
| Field Type | Description |
| -------------- | ------------------------------------------------------------- |
| Text Box | Input for text and numeric values |
| Label | Static text display with rich text support |
| Hidden | Hidden field, commonly used for keys or internal values |
| Text Area | Input for long text (more than 100 characters) |
| Radio Button | Select one option from multiple choices |
| Checkbox | Select one or more options |
| List Box | Dropdown list with static values |
| Dynamic List | Dropdown populated dynamically from database tables |
| Popup | Popup window to search and select data from a database |
| Calendar | Date input field |
| Suggestion Box | Auto‑suggest field with keyword search |
| No Object | Displays computed or custom values not stored in the database |
| Multi‑Select | Select multiple values from a list |
| Upload | File attachment and upload field |
Fields can be arranged freely within a module’s layout to match form design requirements.
***
#### Types of Modules in App Designer
App Designer supports **three types of modules**, each suited for different data‑handling scenarios.
***
**One‑to‑One (1‑1) Module**
A **One‑to‑One module** manages data corresponding to **a single database record**.
Key characteristics:
* Ideal for master or header information
* Supports flexible row and column layouts
* Commonly used for forms such as customer details or request headers
Designers can easily add rows and columns to control layout structure.

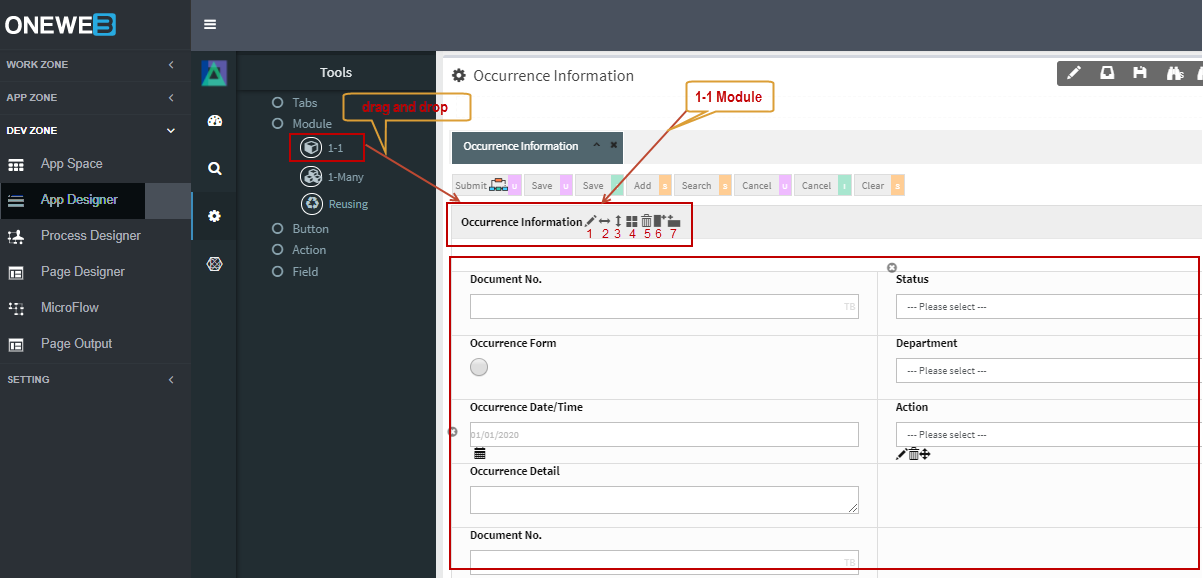

Example: 1‑1 Module with a 5‑row × 2‑column layout\
\&#xNAN;*(Refer to App Designer Reference for detailed property settings)*
***

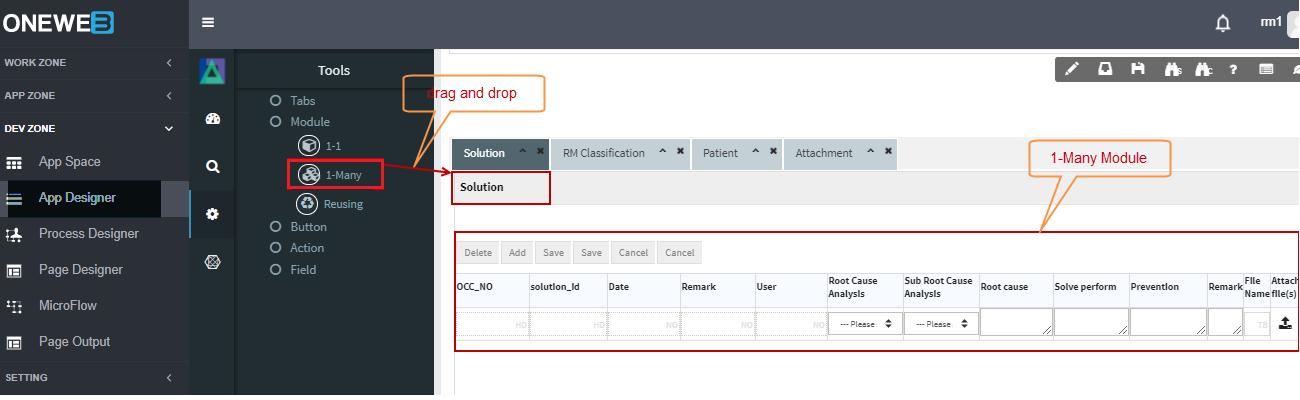

**One‑to‑Many (1‑Many) Module**
A **One‑to‑Many module** manages **multiple related records** and displays them in a tabular format.
Key characteristics:
* Supports **grid and card layouts**
* Suitable for handling lists, line items, or child records
* Can manage large datasets with multiple columns
This module type is commonly used for order items, attachments, or transaction histories.
***

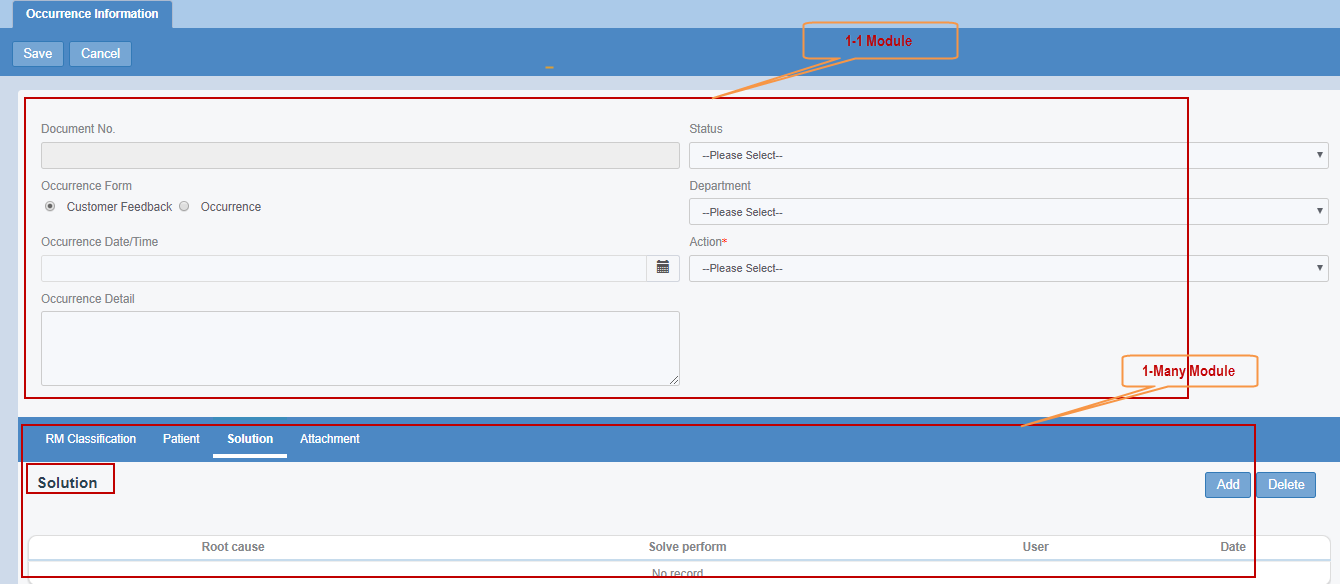

**Combined Module Usage**
Smart Forms often combine **1‑1 and 1‑Many modules** within the same screen.
Typical example:
* 1‑1 module for master information
* 1‑Many module for detail records
***

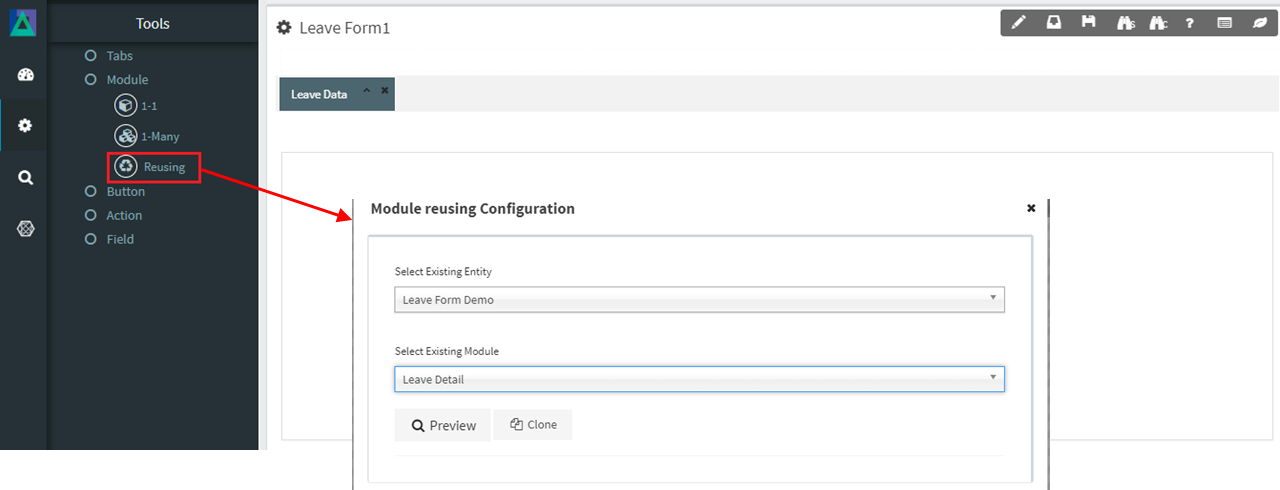

**Reuse Module**
The **Reuse Module** feature allows designers to **reuse existing module configurations**.
Key points:
* Existing modules can be cloned into a new tab
* Field layout and database mappings are copied
* Action configurations are **not copied** and must be reconfigured separately
This feature helps maintain consistency and significantly reduces development time.
***
#### Design Perspective
Within **UI / Page Designer best practices**:
* Use **1‑1 modules** for master or header data
* Use **1‑Many modules** for lists and repeating records
* Reuse modules to improve consistency and maintainability
* Keep module responsibilities clear and focused
Well‑designed modules lead to cleaner Smart Forms, better usability, and easier long‑term maintenance.
---
