# Display Flex

**Display Flex** allows users to create **flexible, responsive layouts** by controlling the flow, alignment, and distribution of elements inside a container.\
This feature is based on the **CSS Flexbox model** and is fully integrated into **ONEWEB Page Designer** as a visual configuration—no CSS coding required.

With Display Flex, users can:

* Control layout direction (row / column)
* Reverse item order dynamically
* Align items along main and cross axes
* Distribute space evenly
* Collapse or expand layouts while preserving structure

***

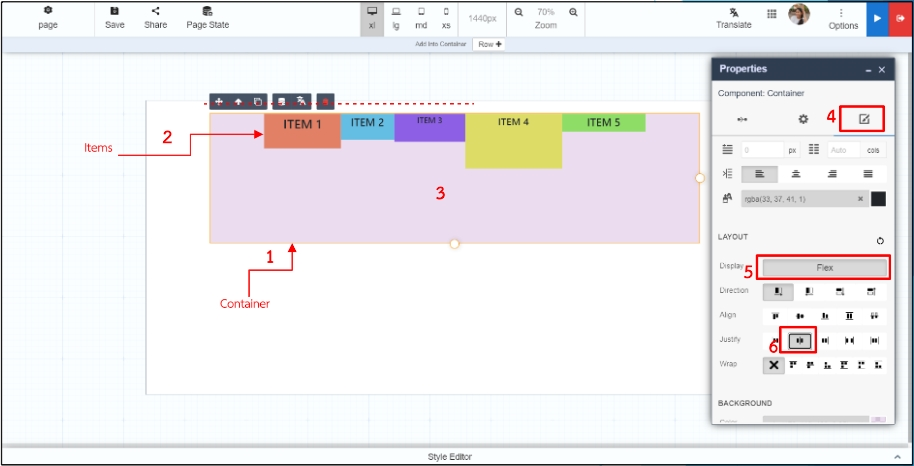

### Enable Display Flex (Basic Steps)

These steps apply to **all Flex configurations**:

1. Drag and drop a **Container**
2. Drag and drop **child items** into the container
3. Click the **Container**
4. Open the **Style** tab
5. Enable **Display Flex** under **Layout**

> Once enabled, default values are applied:
>
> * **Direction:** Row
> * **Wrap:** Don’t wrap

***

### Default Layout (No Display Flex)

If **Display Flex is not enabled**, components follow the normal document flow.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FrnzpvQp037hguMc9IjhQ%2Fimage.png?alt=media&#x26;token=43595377-c886-45cf-9cf6-1055702cb003" alt=""><figcaption></figcaption></figure>

***

### Flex Direction

#### ▶ Direction: Row (Default)

* **LTR:** Left → Right
* **RTL:** Right → Left

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FPawXTSWuEo8ZI2ld4fO1%2Fimage.png?alt=media&#x26;token=eee4ac34-6421-4004-85df-4ef03fcca667" alt=""><figcaption></figcaption></figure>

***

#### ◀ Direction: Row‑Reverse

* **LTR:** Right → Left
* **RTL:** Left → Right

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FiWPMV4pU8iuu76ppMSWk%2Fimage.png?alt=media&#x26;token=6e1bcb9f-ef4d-47a2-a897-d79f771bf32a" alt=""><figcaption></figcaption></figure>

***

#### ▼ Direction: Column

* Top → Bottom

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FvjkHPUGt8NFHvedcelmQ%2Fimage.png?alt=media&#x26;token=9bd1c7ee-d84c-442c-9774-826ac8fac132" alt=""><figcaption></figcaption></figure>

***

#### ▲ Direction: Column‑Reverse

* Bottom → Top

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FevRRTWj73hw6POBqlIsu%2Fimage.png?alt=media&#x26;token=a87d2bba-bfb2-41f6-b412-7e0698b9cbb0" alt=""><figcaption></figcaption></figure>

***

### Align Items (Cross Axis)

#### Align: Flex‑Start

Items start at the beginning of the cross axis.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FSKwvpTFdXddGGlrbUBuv%2Fimage.png?alt=media&#x26;token=ccccffa7-d03e-496a-98cd-8364b634440d" alt=""><figcaption></figcaption></figure>

***

#### Align: Center

Items are centered on the cross axis.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FWaTT752A7zNmSCSIsyhK%2Fimage.png?alt=media&#x26;token=cab7e11a-4038-407b-9dce-d1a900489b63" alt=""><figcaption></figcaption></figure>

***

#### Align: Flex‑End

Items align to the end of the cross axis.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FAkWc21LFkD1YFIVGbEeL%2Fimage.png?alt=media&#x26;token=d85b9c83-75a8-4ce7-bed7-c6fe36d397a2" alt=""><figcaption></figcaption></figure>

***

#### Align: Stretch

Items stretch to fill the container\
(*respecting min/max width constraints*)

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FCZiX4EMaHeGHEMP6bk3l%2Fimage.png?alt=media&#x26;token=58f3553f-21be-4421-b223-e7c97cc91350" alt=""><figcaption></figcaption></figure>

***

### Justify Content (Main Axis)

#### Justify: Flex‑Start

Items pack toward the start.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2F6jVapMEfTO4aarW8Fjv9%2Fimage.png?alt=media&#x26;token=c3f569a7-40a5-448f-b45c-7a1e9a3e904c" alt=""><figcaption></figcaption></figure>

***

#### Justify: Center

Items centered on the line.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FplA3wEVqGxwo1iF7azMW%2Fimage.png?alt=media&#x26;token=33b39880-06cb-4ecb-8bd5-4d6f061fa1fb" alt=""><figcaption></figcaption></figure>

***

#### Justify: Flex‑End

Items pack toward the end.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2F7eX4E1vZLdb2nu6JcBaS%2Fimage.png?alt=media&#x26;token=3859be77-7239-4159-9d08-0e9f856cc9f5" alt=""><figcaption></figcaption></figure>

***

#### Justify: Space‑Between

Even distribution; first and last touch container edges.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FTQSnjojX3JLgWgTdAsgi%2Fimage.png?alt=media&#x26;token=566c54d7-df57-4740-99c2-0e7efbed6ff4" alt=""><figcaption></figcaption></figure>

***

#### Justify: Space‑Around

Equal space around items (visual spacing differs at edges).

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FaRTLut5rv8XsGc4zSURl%2Fimage.png?alt=media&#x26;token=990af30d-5a38-4b0a-bf60-198ad5760b11" alt=""><figcaption></figcaption></figure>

***

### Wrap Behavior

#### Wrap: Don’t Wrap (Default)

All items stay on a single line.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2Fu9x1BvoB7InvMxcklQra%2Fimage.png?alt=media&#x26;token=b714d04d-2127-4aa3-9ead-3c0684c45f0b" alt=""><figcaption></figcaption></figure>

***

#### Wrap Alignment Options

* **Wrap Flex‑Start**
* **Wrap Center**
* **Wrap Flex‑End**
* **Wrap Stretch**
* **Wrap Space‑Between**
* **Wrap Space‑Around**


---
