# Integrate with Other Systems from/to Microflow

### Integrate with Other System from/to Microflow

**Microflow** is one of the core integration tools in ONEWEB, designed to act as a **service‑oriented integration layer**.\
It facilitates both:

* **Internal integration** between ONEWEB components
* **External integration** with third‑party systems and services

Microflow is typically used for **short‑lived, stateless, or service‑based interactions**, making it ideal for API calls, data lookups, and file‑based integrations.

***

### Integrate with SOAP Web Services and REST APIs

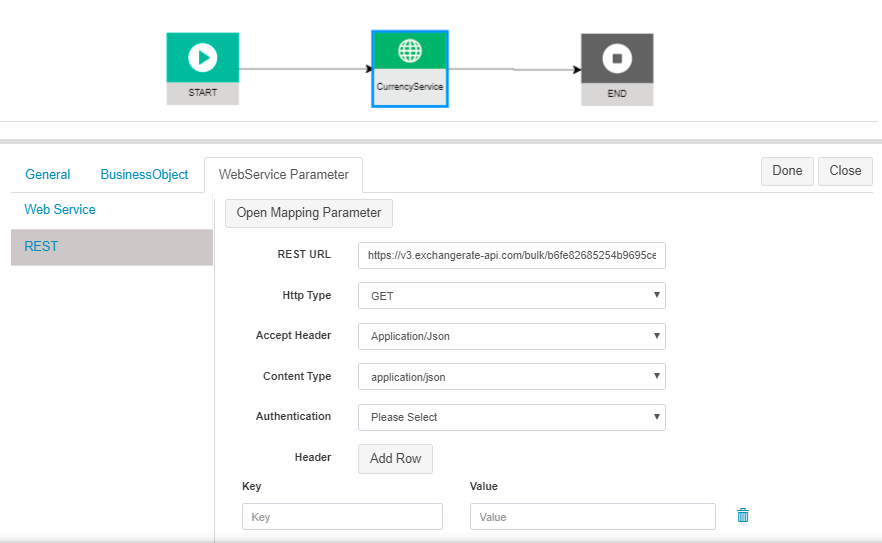

Microflow Designer provides a **Web Service Task** that enables integration with both **SOAP web services** and **REST APIs** using a visual configuration approach.

With the Web Service Task:

* Developers configure service endpoints and specifications via UI
* ONEWEB automatically generates:
  * Service methods
  * Request and response data structures
* No manual coding is required to consume the service

From a configuration perspective, there is **almost no difference between REST and SOAP integration**, simplifying service consumption regardless of protocol.

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FFNwKlSZMD2PQLdNA2yrr%2F0?alt=media" alt=""><figcaption></figcaption></figure>

***

### Integrate with Existing Databases

Microflow also supports integration with **external databases** commonly used in enterprise environments.

Supported databases include (but are not limited to):

* SQL Server
* Oracle
* MySQL
* PostgreSQL
* IBM DB2

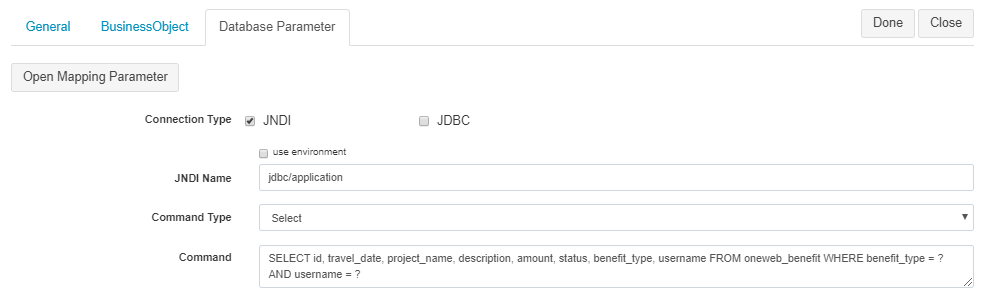

Microflow Designer provides a **Database Task** that allows connections and database operations to be configured visually.

Two database connection approaches are supported:

* **JNDI** – recommended for managed, application‑server environments
* **JDBC** – suitable for custom or external database connections

Database integration through Microflow is commonly used for:

* Legacy system integration
* External data lookup and synchronization
* Service‑level data access

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FSkeHPGnwpvxgGwx2hmet%2F1?alt=media" alt=""><figcaption></figcaption></figure>

***

### Integrate with Excel, CSV, XML, or Fixed‑Width Files

Microflow supports integration with **structured file formats**, including:

* Microsoft Excel files
* Delimited (CSV) files
* XML files
* Fixed‑width files

The **File Read Task** allows Microflows to:

* Read structured data from files
* Create data models automatically
* Populate business objects for further processing

Files can be accessed from:

* Local file systems
* FTP
* SFTP
* FTPS

This type of integration is commonly used for:

* Data import and batch processing
* File‑based system integration
* Legacy data exchange

<figure><img src="https://2015371994-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FMpDjHWFRUtZ5nJcSfVXd%2Fuploads%2FaZsz4rFPPWTJnyp7lewU%2Fimage.png?alt=media&#x26;token=7cc56658-8cd4-42d6-a418-4d53a85bdfb8" alt=""><figcaption></figcaption></figure>

***

### When to Use Microflow for Integration

Microflow is best suited for integration scenarios that are:

* Service‑oriented
* Stateless or short‑running
* Triggered by UI components or external calls
* Focused on data retrieval or transformation

For **long‑running, stateful, or workflow‑based integration**, ONEWEB recommends using **Process Designer** instead.

***

### Summary

**Microflow‑based integration** enables ONEWEB applications to connect with external systems using a flexible, low‑code, and service‑oriented approach.

Using Microflow, applications can:

* Consume REST and SOAP services visually
* Integrate with external databases via JNDI or JDBC
* Process Excel, CSV, XML, and fixed‑width files
* Act as reusable backend services

Microflow plays a key role in ONEWEB’s integration architecture by providing **fast, scalable, and low‑complexity connectivity** between systems.


---
