# Access Database from Smart Forms
**App Designer** in ONEWEB provides **built‑in database connectors** that allow Smart Forms to access and manage data securely through configuration rather than direct database coding.
Using Smart Forms, developers can define **data sources**, **schemas**, and **data mappings**, while ONEWEB automatically handles all **CRUD (Create, Read, Update, Delete)** operations at runtime.
***
#### **Concept: Data Access via Smart Forms**
From a **Data & Content Management** perspective, Smart Forms provide a **controlled UI layer** for interacting with database data:
* Users never access the database directly
* Data access is always governed through entities and modules
* Business rules, access logic, and governance remain enforced
This ensures consistent and safe data usage across the application.
***
### Configure Database Access
#### Step 1: Configure Data Source

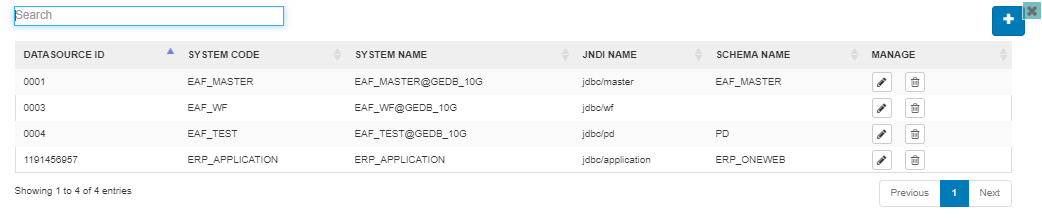

App Designer allows users to configure database connectivity through the **Datasource Configuration** screen.
In this screen, users can:
* Define the database connection
* Select the target schema
* Manage connection properties centrally
Once configured, the data source becomes available for entity configuration.
***
#### Step 2: Associate Data Source with Entity
After defining the data source, users can assign it at the **Entity Configuration** level.
This step links the entity—and all its Smart Forms—to the selected database schema.
***
### Map Modules and Fields
Once the entity is linked to a data source, users can map UI structures to database structures.
***
#### Step 3: Map Module to Database Table
Each module within an entity represents a logical data group.
To map a module to a table:

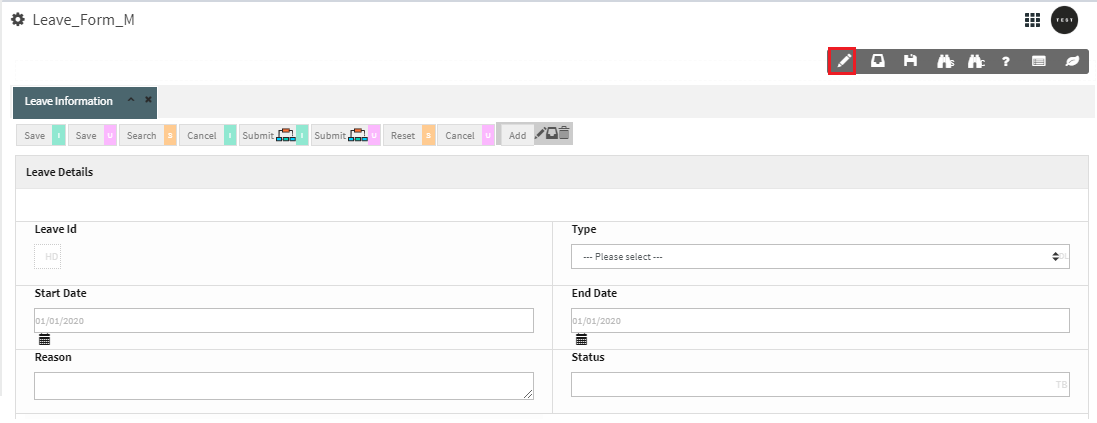

1. Click the **Edit** icon to open **Module Configuration**
2. Select the database table to associate with the module
***
#### Step 4: Map Fields to Table Columns
Each Smart Form field must be mapped to a database column to enable data persistence and retrieval.
To map a field:
1. Click the **Edit** icon on the field to open **Field Configuration**
2. Select the associated database column
***
### Enable Search Capabilities
To allow Smart Forms to search database records:
* Enable **SearchCriteria** for fields used as filters
* Enable **ShowSearch** for fields shown in search results
***
#### Trigger Search Action
Add an **Entity Button** with:
* Page Action: `ENTITY_SEARCH`
* Button Action: `searchResult()`
***
### Enable Data Insert and Update
To persist data changes:
* Add **Entity Buttons** with `saveEntity()`
* Available save options:
* `saveEntity()` – save and navigate
* `saveDraftEntity()` – save and stay on page
* `saveEntityCommit()` – save with explicit commit
#### Insert Mode
Use Page Action: `ENTITY_INSERT`
#### Update Mode
Use Page Action: `ENTITY_UPDATE`
***
### Summary
**Smart Forms provide a structured and governed way to access databases through the UX/UI layer**.
With App Designer, developers can:
* Configure data sources and schemas visually
* Map entities, modules, and fields to database structures
* Enable searching, insertion, and updating of data
* Rely on ONEWEB to manage all CRUD operations securely
This model ensures that **database access remains controlled, maintainable, and aligned with Data & Content Management best practices**.
---
